WC703 Series NAT Coupler

NAT Conversion Gateway with Three 1000Mbps Ports for Multi-segment Communication

Hardware Params：Single-core CPU、256MB RAM、3 1000Mbps network ports

Network Conn Mths：Wi-Fi、Ethernet

Inter-segment Communication：Supports converting internal IPs to external IPs for inter-segment access.

Network Segmentation Isolation：Supports internal/external network isolation and firewall security.

Sample Request Online consulting

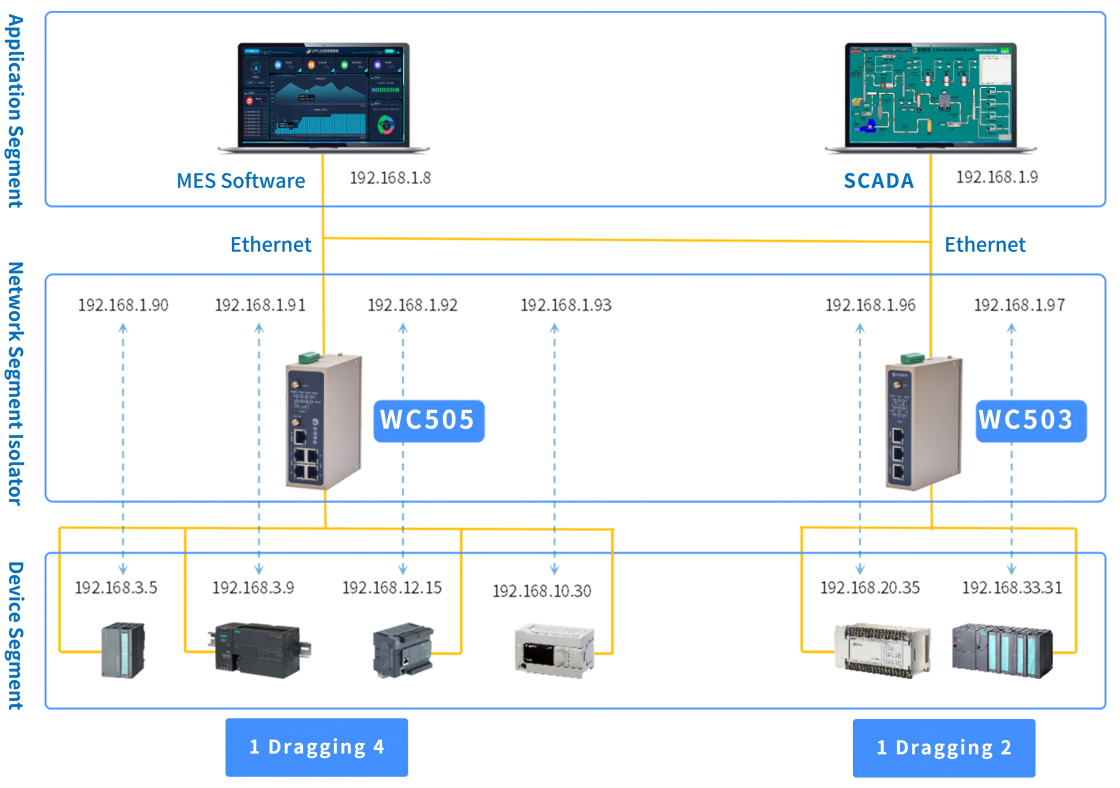

Application Scenarios

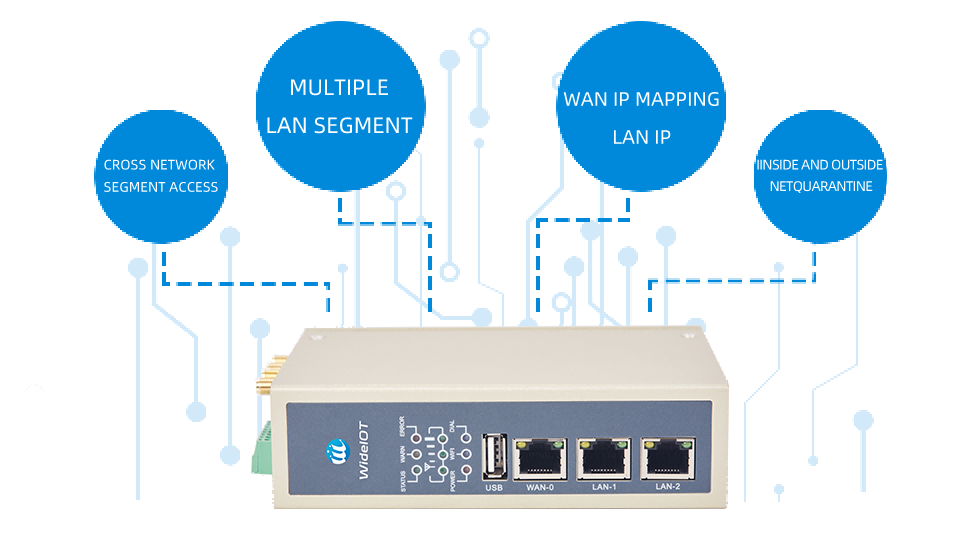

Functional Features

WC703 NAT Coupler

WC703 NAT Coupler (NAT Conversion Gateway) is suitable for network communication and data collection of PLC, HMI, CNC, DCS, MES, etc. in production networks. It integrates cross-segment isolation and IP conversion functions. Meanwhile, it supports network segment isolation and NAT conversion for more than 2 devices (e.g., PLC, CNC). For multiple devices in the workshop with IP addresses of different network segments, they can be unified into the same network segment to enable cross-segment access such as online programming, data collection, and remote management of devices (e.g., PLC, CNC).
(1) Solves the problem that newly purchased devices cannot access the network due to unmodifiable IP addresses.
(2) Resolves communication failure between devices of different network segments via NAT conversion.
(3) Achieves unified IP planning and management of production networks through IP renaming.
(4) Hides the real IP of devices to prevent network attacks via IP renaming.
(5) Enhances resistance to network interference and attacks effectively through firewall segment isolation and port restriction.

Safe isolation, Reliable protection

Network isolation and protection are realized through various mechanisms such as firewall, internal and external network isolation, equipment IP hiding and encryption, so that your equipment can be safely accessed as you like.

Industrial Grade Features

Support 6V~35V wide voltage power supply, -20℃~70℃ industrial grade wide temperature design, anti-electromagnetic interference, adapt to more application sites with power supply requirements and temperature requirements.
1）Metal shell, protection grade is IP30.
2）EMC grade indicators reach level 3.
3）The Ethernet port supports 1.5KV isolation transformer protection.
4）Anti-electromagnetic interference.

Specifications

Software Specifications
Network functions	Network access	Supports WIFI, Ethernet access
	LAN protocol	Support ARP
	WAN protocol	Support PPP
	IP Applications	Support Ping, Tracer, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, ROUTE, NAT, DMZ
	IP routing	Support static route
Safety	Safety protection	Support full-state packet inspection (SPI), prevent denial of service (DoS) attacks, filter multicast/Ping probe packets, source port mapping, destination port mapping, DMZ, access control lists (ACL), IP-MAC binding.
	Data security	Support for L2TP VPN / PPTP VPN / OPEN VPN / IPSec VPN (optional)
	Firewall	Built-in firewall features, all-round network blocking and protection
	Dog Watch Protection	Multiple software and hardware watchdogs to achieve self-recovery of device operation faults
	Functional Safety Guardian	Real-time monitoring of various function modules, predicting and handling possible errors and self-healing.
Management maintenance	Configuration Engineering	Support for local and remote configuration of data acquisition projects
	Application upgrade	Support for local and remote program upgrades, fast product feature releases and iterations.
	Log function	Support complete and detailed logging functions to facilitate quick problem diagnosis.
	Diagnosis command	Support a rich diagnostic command interface, which can achieve local self-diagnosis.
	Status Inquiry	System state, module state, network connection state, application state, etc.

Hardware Specifications
Hardware platform	CPU core	880MHZ Dual-core
	Run Storage	256MB (2Gb)
	Program storage	16MB (128Mb)
Interface characteristics	Power interface	DC 9V-35V (terminals), commonly 12V or 24V
	Ethernet port	3*10/100/1000Mbps high-speed Ethernet ports, 1.5KV network isolation transformer protection 3 network ports with data switching function, FE0 supports WAN/LAN settings
	Serial interface	2 RS-232/485 interfaces ( terminal blocks ) optional, 15KV ESD protection Each 485 interface can be connected to a maximum of 31 slaves
	Antenna connector	WLAN: RP-SMA
	Reset button	Pinhole reset button
Mechanical characteristics	Dimensions	145 x 112 x 40 (mm)
	Installation method	Slider type
	case	Metal shell (Tao Hua Jin)
	Protection level	IP30
	Cooling method	No fan cooling
	Weight	608g (weight may vary depending on configuration)
Environmental humidity	Environmental humidity	5% ~ 95% (no frost)
	Storage temperature	-40 ℃~ 85℃
	Working temperature	-20℃ ~ 70℃
Indicator light	3*3 indicator light	POWER power light (red), STATUS status light (green), WARN warning light (yellow), ERR error light (red), WiFi indicator light (blue)
EMC indicators	Electrostatic Discharge Immunity	GB/T17626.2-2018, level4
	Immunity to electric fast transient pulse group	GB/T17626.4-2018, level4
	Oscillating wave magnetic field immunity	GB/T17626.18-2016,level4
	RF electromagnetic field radiation immunity	GB/T17626.3-2016,level4
	Surge (impulse) immunity	GB/T17626.5-2019, level4
	AC magnetic field immunity	GB/T17626.8-2006, level4
Physical properties	Vibration	GB/T2423.10-2008
	Impact	GB/T2423.5-2019
	Fall	GB/T2423.8-1995

Downloads

【Product Specification】WC703 Product Specification

【Product User Manual】NAT Coupler User Manual
