PLC Gateway|5G/4G IOT gateway_Edge Computing Gateway | MQTT Gateway | PLC Gateway | Data Acquisition Gateway

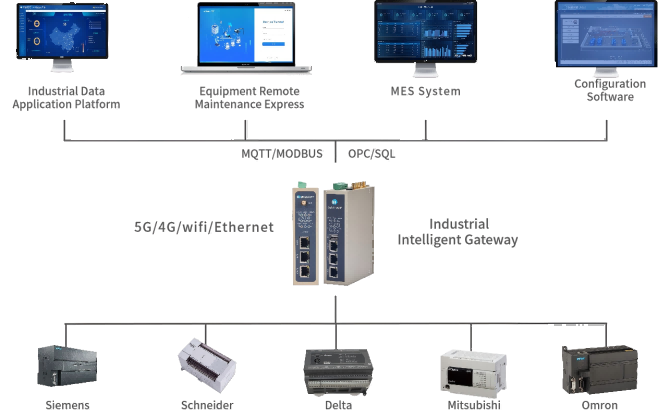

WideIOT PLC Remote Gateway enables remote communication, data acquisition, remote monitoring, remote debugging, remote diagnosis, and remote program upload/download for various PLCs. It helps smart factories, equipment manufacturers, and system integrators quickly achieve PLC data cloud access and remote maintenance, realizing digital operation and remote O&M. It supports data acquisition from all mainstream PLC devices on the market, including Siemens, Mitsubishi, Omron, Schneider, Delta, Inovance, Beckhoff, Keyence, Panasonic, AB, Hollysys, Fatek, Xinje, as well as MODBUS and OPC series.

Data Acquisition

Remote Maintenance

Data Cloud Access

Protocol Conversion

Device Networking

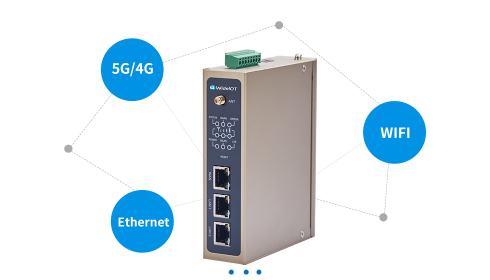

Supports 5G/4G/WIFI/Ethernet for device networking and remote communication, meeting diverse industrial application scenarios.

Flexible networking: 5G/4G, WIFI, LORA, VPN, and other networking methods.

Secure access: APN and VPN security encryption, built-in firewall for comprehensive network protection.

Stable and reliable: Multi-network backup, disconnection reconnection, and multi-layer hardware/software watchdogs for automatic fault recovery.

Data Acquisition

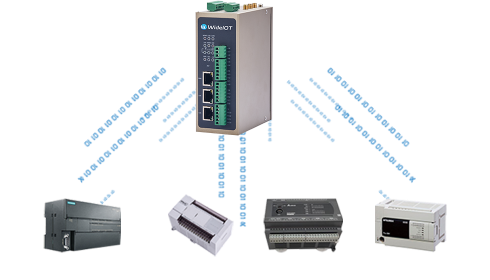

Supports data acquisition from various PLCs at edge nodes, with protocol parsing and edge computing.

Convenient acquisition: A single gateway can collect data from multiple PLCs with different protocols simultaneously.

High-speed acquisition: Embedded high-speed acquisition algorithms and concurrent bus coordination mechanisms.

Stable acquisition: Intelligent bus anti-collision and acquisition link fault self-healing algorithms.

Flexible acquisition: Customizable collection rules (points, time, communication rules, etc.).

Edge Computing

Supports various edge computing functions such as intelligent acquisition, data filtering, alarm calculation, jump trigger, formula calculation, grouping strategy, scheduled tasks, and algorithm development. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs; by implementing application algorithms and task control at the edge, it enables intelligent applications.

Device Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

Cloud Access

Northbound supports access to WideIOT Cloud Platform, customer-developed cloud platforms,public iot platforms, as well as industrial software like SCADA systems, MES, and industry monitoring platforms.

Secure and reliable access: Supports TLS encryption, multiple QoS levels, and breakpoint resume.

Adaptive messages: Supports customization or developer adaptation for quick access to various cloud platforms and industrial software.

Rich cloud protocols: MQTT, HTTP, TCP, OPC UA, Modbus-TCP, SQL.

Multiple remote centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms.

Open APIs: Rich API interfaces for rapid business platform development.

Remote Management

Through the WideIOT Device Management Platform, remote configuration and management of PLCs and gateways are realized. It enables real-time monitoring of PLC online status and data, remote configuration of gateway data acquisition projects, and remote maintenance and diagnosis of gateways.

Remote Configuration Management

Template-based Configuration

Real-time Status Monitoring

Remote Diagnostic Maintenance

Remote Maintenance

Via WideIOT Device Maintenance Express, remote configuration, debugging, diagnosis, and program upload/download are available for global PLCs. It reduces maintenance costs while improving efficiency and customer service quality.

Remote Control

Supports remote start and stop of PLC devices.

Enables remote parameter adjustment for PLC operation.

Allows remote issuance of control commands to PLCs.

SCADA Monitoring

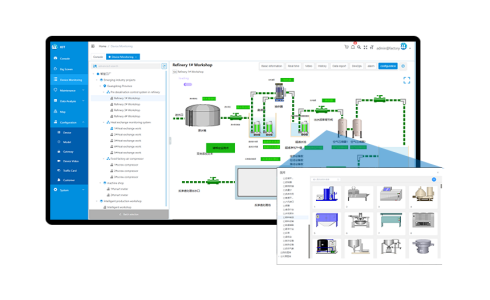

By connecting gateway data to the WideIOT Industrial Data Cloud Platform, remote PLC data monitoring is achieved. The platform's SCADA function allows free drawing of monitoring interfaces, enabling visual monitoring of equipment operation status and process flows on computers and mobile devices.

Protocol Conversion

Converts protocols of various PLCs to Modbus TCP, Modbus RTU, OPC UA, IEC104, HJ212, SL651, etc., realizing interconnection between different PLCs and various industrial control software/controllers.

Stable and Reliable

Industrial-grade design: 6~35V wide voltage supply, -20°C~70°C operating temperature range, with EMC and high/low temperature certifications from authoritative institutions, suitable for harsh industrial environments.

Embedded hardware/software watchdogs and multi-layer protection programs ensure rapid fault recovery of hardware, systems, and applications, maintaining 24/7 online operation for unattended scenarios.
