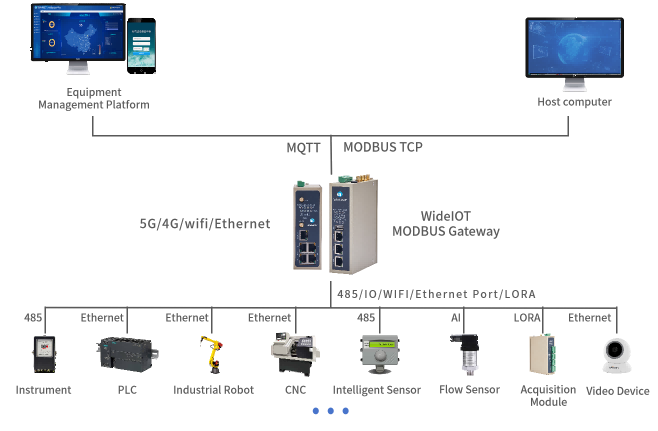

WideIOT Modbus Gateway supports collecting data from various devices with Modbus RTU and Modbus TCP protocols. After edge computing and data standardization via the gateway, the data is uploaded to various cloud platforms and software through the MQTT protocol. It also enables converting data from industrial equipment with non-Modbus protocols (such as PLCs, instruments, sensors, etc.) into Modbus protocol, realizing data interconnection with SCADA software or platforms.

Supports data collection from devices with Modbus RTU and Modbus TCP protocols

Supports data collection via Modbus RTU over TCP protocol

Supports converting non-Modbus protocol devices to Modbus TCP protocol (slave)

Supports uploading Modbus device data to the cloud via MQTT protocol

Modbus Data Acquisition

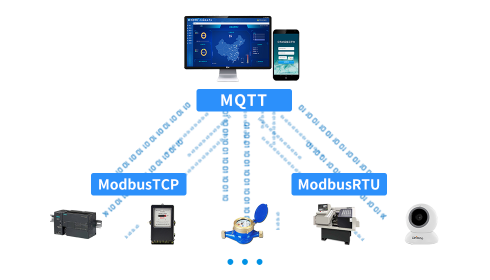

Supports collecting data from various Modbus-TCP and Modbus-RTU protocol devices, and uploading the data to cloud platforms via MQTT protocol

Modbus Data Forwarding

Supports collecting data from various industrial control devices, PLCs, sensors, instruments, etc., and forwarding the data to SCADA software, upper computer software, and cloud platforms via Modbus-TCP protocol

Device Networking

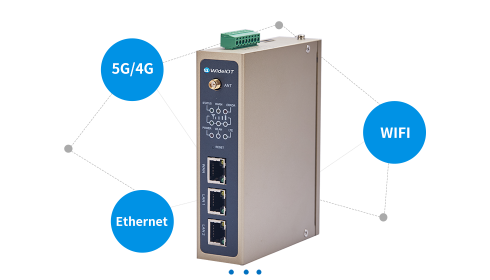

Supports 5G/4G/WIFI/Ethernet for device networking and remote communication, meeting diverse industrial application scenarios

Convenient Networking: Supports 5G/4G, WIFI, LORA, VPN, and other flexible networking methods

Secure Access: Supports APN and VPN security encryption, built-in firewall for comprehensive network protection

Stable and Reliable: Supports multi-network backup, disconnection reconnection, and multi-layer hardware/software watchdogs for automatic fault recovery

Data Acquisition

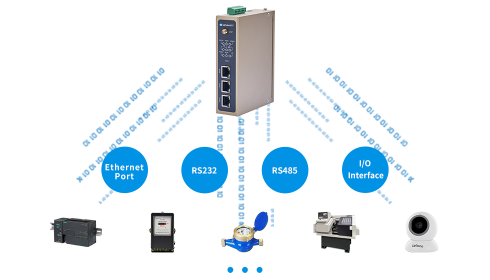

Supports multiple interface types such as Ethernet, RS232, RS485, and IO interfaces, enabling connection to various sensors and devices. It supports data collection from Modbus RTU and Modbus TCP protocol devices (PLCs, instruments, sensors, PV inverters, environmental protection, power equipment, etc.)

Convenient Acquisition: A single gateway supports simultaneous data collection from multiple devices with different protocols

High-speed Acquisition: Embedded high-speed acquisition algorithms, concurrent acquisition and bus coordination mechanisms

Stable Acquisition: Intelligent bus anti-collision mechanism and acquisition link fault self-healing algorithm

Flexible Acquisition: Supports custom configuration of various collection rules (points, time, communication rules, etc.)

Edge Computing

Supports various edge computing functions such as intelligent acquisition, data filtering, alarm calculation, jump trigger, formula calculation, and grouping strategies. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs

Device Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

Cloud Access

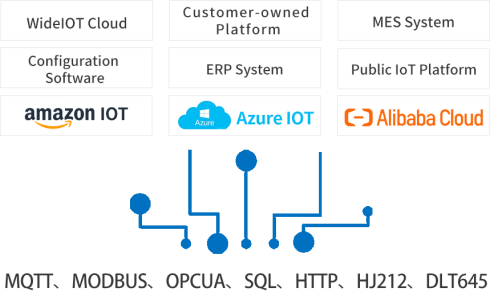

Northbound supports access to WideIOT Cloud Platform, customer-developed cloud platforms,public iot platforms, as well as industrial software like SCADA systems, MES, and ERP systems

Secure and Reliable Access: Supports TLS encryption, multiple QoS levels, and breakpoint resume

Adaptive Messages: Supports developer adaptation or custom definition for quick access to various cloud platforms and industrial software

Rich Cloud Protocols: Supports MQTT, HTTP, TCP, OPC UA, Modbus-TCP, SQL

Multiple Remote Centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms

Open API Interfaces: Provides rich API interfaces for rapid development of various business platforms

Remote Management

Through the WideIOT Device Management Platform, it realizes remote configuration and management of remote devices and gateways. It mainly realizes monitoring of device online status and data, remote configuration and management of gateway data acquisition projects, and remote maintenance and diagnosis of gateways

Remote Configuration Management

Template-based Configuration Management

Real-time Status Monitoring

Remote Diagnosis and Maintenance

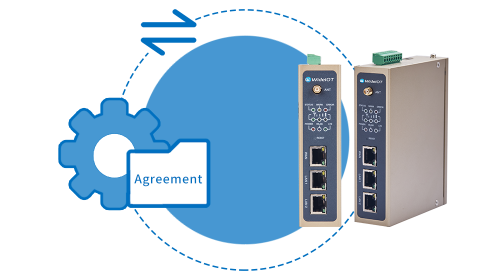

Protocol Conversion

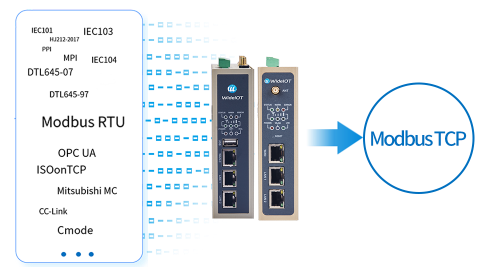

Supports converting protocols of various devices to Modbus TCP, Modbus RTU, OPC UA, IEC104, HJ212, SL651, etc., enabling interconnection between different devices and various industrial control software and controllers

Supports Modbus RTU to Modbus TCP conversion

Supports conversion of PLC/DTL645/IEC101/IEC104/IEC103 and other protocols to Modbus TCP

Stable and Reliable

Industrial-grade design, supports 6~35V wide voltage power supply, -20°C~70°C operating temperature range, with EMC and high/low temperature certifications from authoritative institutions, suitable for harsh industrial environments

Embedded hardware/software watchdogs and multi-layer protection programs ensure rapid fault recovery of hardware, systems, and applications, maintaining 24/7 online operation for unattended scenarios
