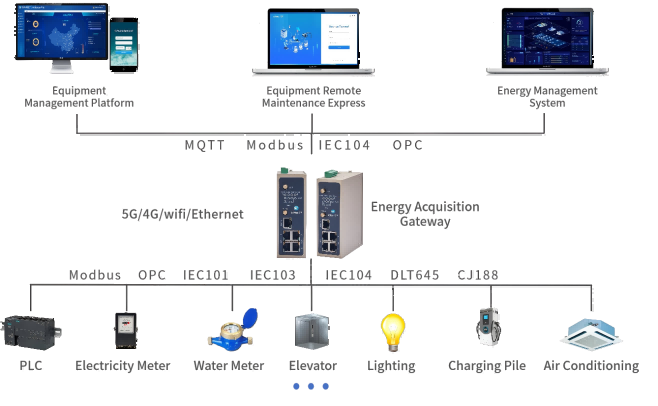

WideIOT Energy Data Acquisition Gateway can connect to water, electricity, gas, heat and other energy equipment as well as PLCs. It supports protocols including Modbus, IEC101, IEC103, IEC104, DLT645, IEC61850, etc., collects energy data and uploads it to energy management systems or data centers for analysis and monitoring. It real-time monitors the operating status and energy consumption of various energy equipment, timely detects and resolves issues such as energy waste and equipment failures, and improves energy management efficiency.

Data Acquisition: Enables data collection from various energy equipment such as water, electricity, gas, and heat to energy management systems, MES, etc.

Edge Computing: Performs edge computing on the collected energy consumption data, reducing the pressure on cloud platforms

Remote Control: Realizes remote start/stop and parameter adjustment of various energy equipment

Rich Interfaces: Multiple Ethernet ports optional, multiple serial ports optional (1 serial port, 2 serial ports, 6 serial ports, 10 serial ports), and CAN port

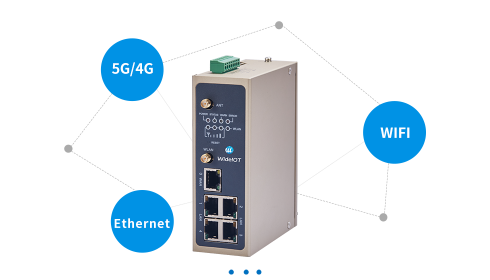

Device Networking

Supports 5G, 4G, WIFI, Ethernet, and other methods to achieve device networking and remote communication, meeting various industrial application scenarios.

Convenient Networking: Supports 5G/4G, WIFI, LORA, VPN networking, etc., with flexible networking methods

Secure Access: Supports APN and VPN security encryption, built-in firewall function for comprehensive network isolation and protection

Stable and Reliable: Supports multi-network backup, disconnection reconnection, and multiple hardware/software watchdogs to achieve device operation fault self-healing

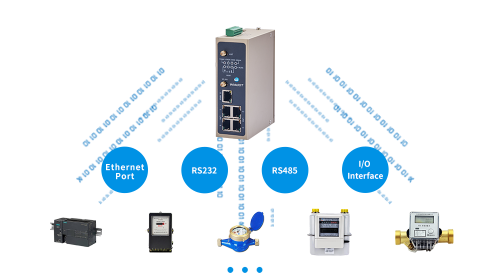

Data Acquisition

Supports multiple interface types such as Ethernet, RS232, RS485, IO interfaces, etc., which can connect various types of sensors and equipment to achieve energy equipment data acquisition.

Convenient Acquisition: A single gateway supports simultaneous data collection from multiple devices with different protocols

High-speed Acquisition: Embedded high-speed acquisition algorithms, concurrent collection and bus coordination mechanisms

Stable Acquisition: Intelligent bus anti-collision mechanism and acquisition link fault self-healing algorithm

Flexible Acquisition: Supports custom configuration of various collection rules (points, time, communication rules, etc.)

Edge Computing

Supports various edge computing functions such as intelligent collection, data filtering, alarm calculation, jump trigger, formula calculation, grouping strategy, etc. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs.

Thing Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

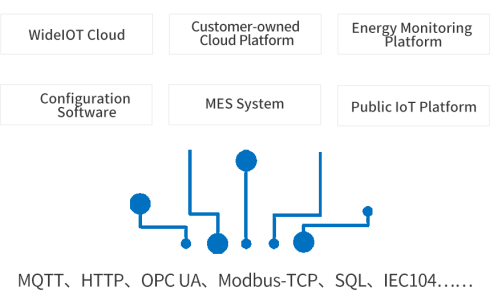

Cloud Access

Northbound supports access to WideIOT cloud platform, customer-developed cloud platforms, public iot platforms, energy monitoring platforms, etc.

Secure and Reliable Access: Supports various TLS security encryptions, multiple QOS levels, and breakpoint resume

Independent Message Adaptation: Supports development adaptation or independent definition for quick access to various cloud platforms and industrial software

Rich Cloud Protocols: Supports MQTT, HTTP, OPC UA, Modbus-TCP, SQL, IEC104, etc.

Multiple Remote Centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms

Open API Interfaces: Supports rich API development interfaces for users to quickly develop various business platforms

Remote Management

Through the WideIOT device management platform, remote configuration and management of remote devices and gateways can be achieved. It mainly realizes the monitoring of device online status and data, the remote configuration and management of gateway data collection projects, and the remote maintenance and diagnosis of gateways.

Remote Configuration Management

Template-based Configuration Management

Real-time Status Monitoring

Remote Diagnosis and Maintenance

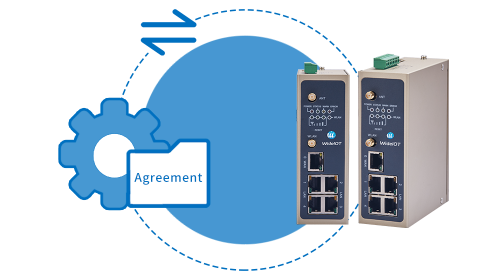

Protocol Conversion

Supports converting various device protocols into Modbus-TCP, MQTT, OPC UA, IEC104, HJ212 and other protocols to achieve interconnection between different devices and various industrial control software and controllers.

Stable and Reliable

Full industrial-grade design, supporting 6~35V wide voltage power supply, -20°C~70°C industrial-grade wide temperature design, and industrial certifications such as EMC and high/low temperature from authoritative institutions, meeting harsh industrial environment applications.

Embedded hardware and software watchdogs, multi-level monitoring programs, ensuring hardware, systems, and applications achieve fault self-healing in the shortest time, thus realizing real-time online and normal operation of devices forever, meeting various unattended application scenarios.
