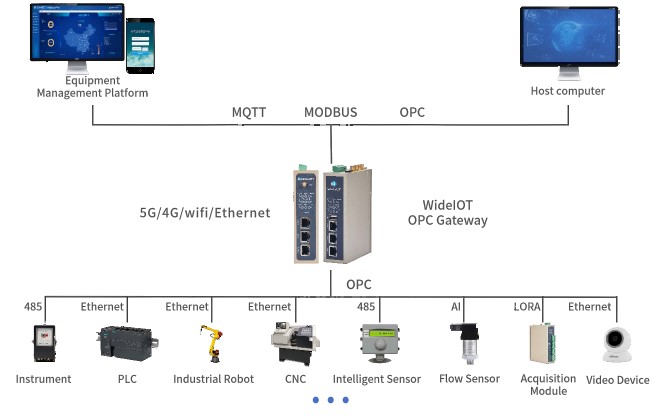

WideIOT OPC Gateway features device networking, data acquisition, protocol parsing, edge computing, and cloud access. It supports OPC UA protocol parsing and data collection, enabling connections to PLCs, instruments, sensors, CNC machine tools, DCS, SCADA, and other devices. It collects real-time data and transmits it to cloud platforms or local upper computers via Modbus/MQTT protocols. Additionally, it supports forwarding collected device data to SCADA systems, upper computer software, and cloud platforms through the OPC UA protocol, realizing remote monitoring and remote management of devices.

Enables data exchange between devices and programs from different manufacturers

OPC UA Data Acquisition: Supports data collection from various OPC UA protocol devices

OPC UA Data Forwarding: Supports OPC UA protocol access to cloud platforms and SCADA systems

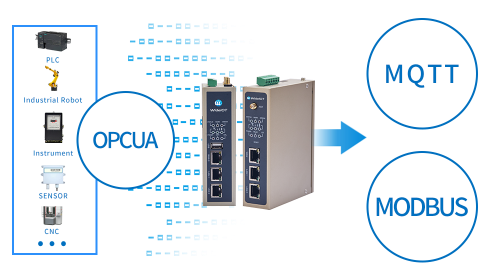

OPC UA Data Acquisition

Supports collecting data from various OPC UA protocol devices and forwarding it to SCADA software via Modbus protocol or uploading to cloud platforms via MQTT protocol

OPC UA Data Forwarding

Supports collecting data from various industrial control devices, DCS, and SCADA systems, and forwarding it to SCADA software, upper computer software, and cloud platforms via OPC UA protocol

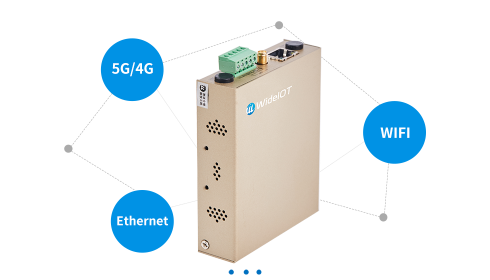

Device Networking

Supports 5G/4G/WIFI/Ethernet for device networking and remote communication, meeting diverse industrial application scenarios

Flexible Networking: Supports 5G/4G, WIFI, LORA, VPN, and other flexible networking methods

Secure Access: Supports APN and VPN security encryption, built-in firewall for comprehensive network protection

Stable and Reliable: Supports multi-network backup, disconnection reconnection, and multi-layer hardware/software watchdogs for automatic fault recovery

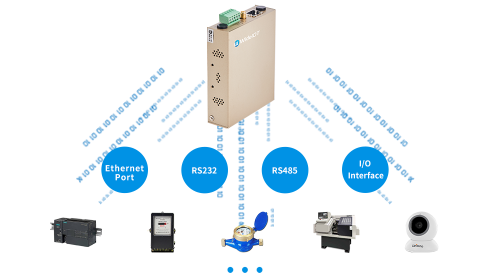

Data Acquisition

Supports multiple interface types such as Ethernet, RS232, RS485, and IO interfaces, enabling connection to various sensors and devices. It supports data collection from various PLCs, instruments, machine tools, robotic arms, environmental protection, and power equipment

Convenient Acquisition: A single gateway supports simultaneous data collection from multiple devices with different protocols

High-speed Acquisition: Embedded high-speed acquisition algorithms, concurrent acquisition and bus coordination mechanisms

Stable Acquisition: Intelligent bus anti-collision mechanism and acquisition link fault self-healing algorithm

Flexible Acquisition: Supports custom configuration of various collection rules (points, time, communication rules, etc.)

Edge Computing

Supports various edge computing functions such as intelligent acquisition, data filtering, alarm calculation, jump trigger, formula calculation, and grouping strategies. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs

Device Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

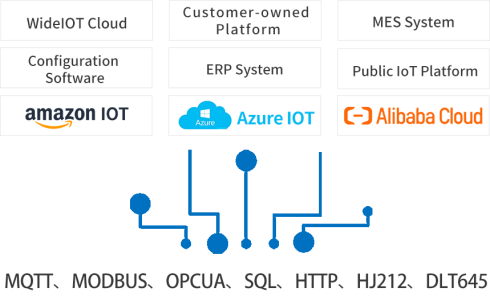

Cloud Access

Northbound supports access to WideIOT Cloud Platform, customer-developed cloud platforms, public iot platforms, as well as industrial software like SCADA systems, MES, and ERP systems

Secure and Reliable Access: Supports TLS encryption, multiple QoS levels, and breakpoint resume

Adaptive Messages: Supports developer adaptation or custom definition for quick access to various cloud platforms and industrial software

Rich Cloud Protocols: Supports MQTT, HTTP, TCP, OPC UA, Modbus-TCP, SQL

Multiple Remote Centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms

Open API Interfaces: Provides rich API interfaces for rapid development of various business platforms

Stable and Reliable

Industrial-grade design, supports 6~35V wide voltage power supply, -20°C~70°C operating temperature range, with EMC and high/low temperature certifications from authoritative institutions, suitable for harsh industrial environments

Embedded hardware/software watchdogs and multi-layer protection programs ensure rapid fault recovery of hardware, systems, and applications, maintaining 24/7 online operation for unattended scenarios

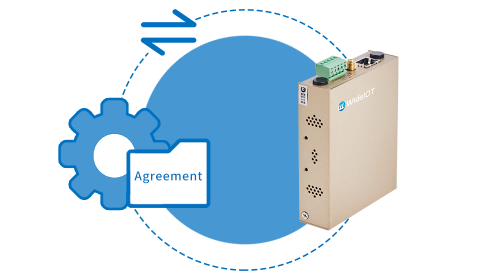

Protocol Conversion

Supports converting protocols of various devices to Modbus TCP, Modbus RTU, OPC UA, IEC104, HJ212, SL651, etc., enabling interconnection between different devices and various industrial control software and controllers

Stable and Reliable

Embedded hardware/software watchdogs and multi-layer protection programs ensure rapid fault recovery of hardware, systems, and applications, maintaining 24/7 online operation for unattended scenarios
