WideIOT MQTT Cloud Gateway is an important edge device for industrial equipment data cloud access. It enables convenient collection of data from various industrial equipment and seamless access to multiple industrial IoT cloud platforms via the MQTT protocol.

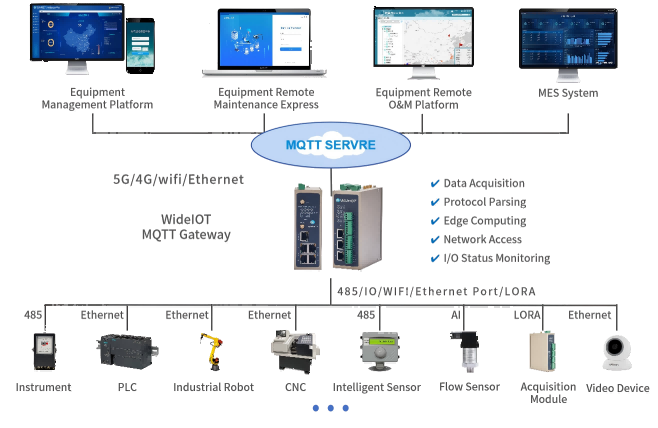

WideIOT MQTT Cloud Gateway supports data collection from most industrial equipment on the market, including PLCs, instruments, sensors, water treatment equipment, environmental protection equipment, power equipment, PV inverters, CNC machine tools, robotic arms, and other industrial devices. It connects to remote software systems and cloud platforms via the MQTT IoT protocol, including WideIOT IoT Platform, public IoT platforms, AWS IoT, Azure IoT, Huawei IoT, Alibaba IoT, and other IoT cloud platforms, as well as industrial software such as SCADA systems, MES, and ERP systems. It enables the transmission of real-time data, alarm data, and historical data of industrial equipment, and realizes two-way industrial control.

Equipped with multiple network interfaces, a rich protocol library, powerful acquisition capabilities, secure and reliable access, abundant API interfaces, and comprehensive gateway management and application functions, WideIOT MQTT Cloud Gateway assists various IoT platform providers, MES vendors, and industrial software integrators in building professional Industry 4.0 and IoT monitoring systems.

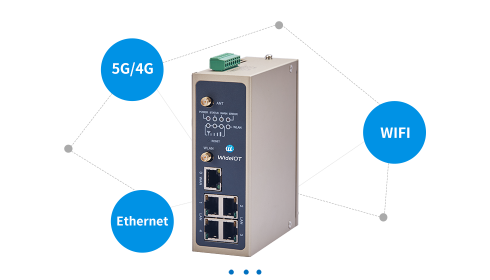

Device Networking

Supports 5G/4G/WIFI/Ethernet for device networking and remote communication, meeting diverse industrial application scenarios

Flexible Networking: Supports 5G/4G, WIFI, LORA, VPN, and other flexible networking methods

Secure Access: Supports APN and VPN security encryption, built-in firewall for comprehensive network protection

Stable and Reliable: Supports multi-network backup, disconnection reconnection, and multi-layer hardware/software watchdogs for automatic fault recovery

Data Acquisition

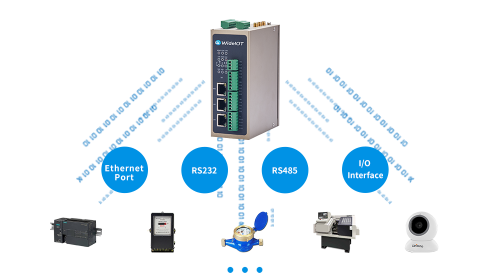

Supports multiple interface types such as Ethernet, RS232, RS485, and IO interfaces, enabling connection to various sensors and devices. It supports data acquisition from various PLCs, instruments, machine tools, robots, environmental protection, and power equipment

Convenient Acquisition: A single gateway supports simultaneous data collection from multiple devices with different protocols

High-speed Acquisition: Embedded high-speed acquisition algorithms, concurrent acquisition and bus coordination mechanisms

Stable Acquisition: Intelligent bus anti-collision mechanism and acquisition link fault self-healing algorithm

Flexible Acquisition: Supports custom configuration of various collection rules (points, time, communication rules, etc.)

Edge Computing

Supports various edge computing functions such as intelligent acquisition, data filtering, alarm calculation, jump trigger, formula calculation, and grouping strategies. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs.

Device Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

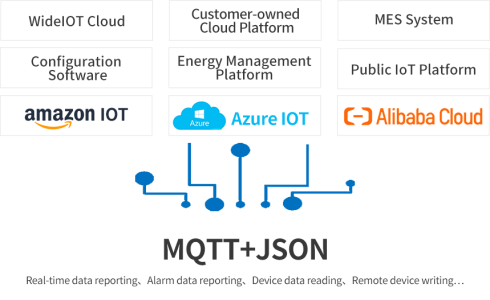

Cloud Access

Northbound supports MQTT protocol access to WideIOT Cloud Platform, customer-developed cloud platforms, public iot platforms, as well as industrial software like SCADA systems, MES, and ERP systems

Secure and Reliable Access: Supports TLS encryption, multiple QoS levels, and breakpoint resume

Adaptive Messages: Supports developer adaptation or custom definition for quick access to various cloud platforms and industrial software

Rich Cloud Protocols: Supports MQTT, HTTP, TCP, OPC UA, Modbus-TCP, SQL

Multiple Remote Centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms

Open API Interfaces: Provides rich API interfaces for rapid development of various business platforms

Rich API Interfaces

WideIOT cloud gateway provides rich API interfaces that enable timed data reporting, alarm reporting, historical data reporting, and jump reporting of device data. It supports two-way control of devices, real-time status monitoring, remote configuration and management of device data collection rules and calculation rules, time synchronization, and various advanced functions such as remote diagnosis and maintenance. It facilitates software developers to quickly develop their own industrial IoT and IIoT platforms and various industrial control software through the MQTT+JSON string API interfaces provided by WideIOT gateway. 《Open Platform API Interface Document》

Rich Data Interfaces

Customizable Topics

Customizable Data Points

Two-way Control

Parsing and Transparent Transmission Options

Easy-to-understand JSON Messages

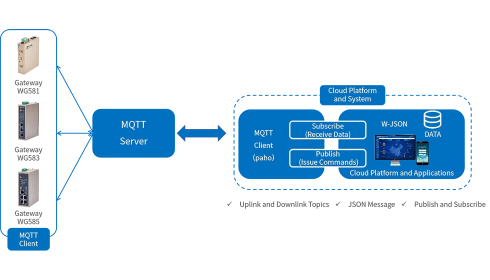

Gateway Development Model

The gateway embeds an MQTT client that establishes a two-way communication link with the MQTT Broker deployed on the server. At the same time, the customer's self-developed cloud platform (or local software) also realizes two-way communication for subscribing and publishing data with the MQTT Broker through the MQTT client.

Topic: Contains the gateway serial number and data direction to determine the data flow direction

Action: Subscription and publishing to regulate message receiving and sending

Message: JSON data messages for communication between devices and platforms

Data Parsing Methods

Provides two methods: edge parsing (protocol parsing) and cloud parsing (data transparent transmission)

Edge Parsing: For devices with built-in drivers in the gateway, directly use edge parsing and upload standardized W-JSON format data to the cloud for storage

Cloud Parsing: For device data that cannot be parsed by the gateway, directly transmit it to the cloud through the MQTT channel for parsing and storage

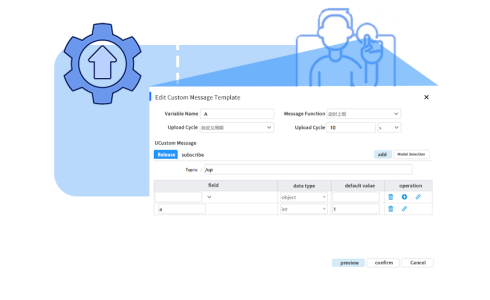

Customizable Messages

Built-in JSON format converter requires no customization. Users can set different JSON formats according to their needs (identifier name, location, data point type, multi-level nesting, array, etc.). Flexible configuration allows users to implement different data formats according to the communication needs between their IoT applications and cloud platforms.

Custom Message Templates

Custom Message Functions

Custom Reporting Cycles

Quick and Easy Deployment Configuration

Remote Management

Through the WideIOT Device Management Platform, remote configuration and management of remote devices and gateways are realized. It mainly enables real-time monitoring of device online status and data, remote configuration and management of gateway data acquisition projects, and remote maintenance and diagnosis of gateways.

Remote Configuration Management

Template-based Configuration Management

Real-time Status Monitoring

Remote Diagnostic Maintenance

Stable and Reliable

Industrial-grade design, supports 6~35V wide voltage power supply, -20°C~70°C industrial-grade wide temperature design, with EMC and high/low temperature industrial certifications from authoritative institutions, suitable for harsh industrial environment applications.

Embedded hardware/software watchdogs and multi-layer protection programs ensure rapid fault recovery of hardware, systems, and applications, maintaining 24/7 online operation and normal operation of devices, meeting various unattended application scenarios.
