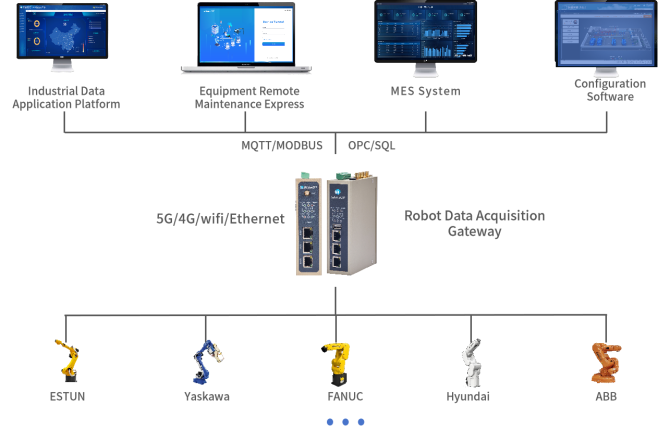

WideIOT Robot Data Acquisition Gateway supports collecting data such as operating status, process parameters, fault information, and production data from most robotic (robotic arm) equipment on the market (Fanuc, ABB, Hyundai, Yaskawa, Estun, etc.). It connects the data to the factory's MES system, factory processing system, database, IoT system, WideIOT Cloud Platform, device management platform, etc., enabling remote monitoring and maintenance of robotic equipment, production optimization, and data analysis. It helps improve production efficiency, reduce costs, and ensure production safety.

Data Acquisition: Enables data collection, protocol parsing, and edge computing for various types of robots at edge nodes

Data Upload to Cloud: Realizes remote access, remote management, remote monitoring, and data application for various types of robots

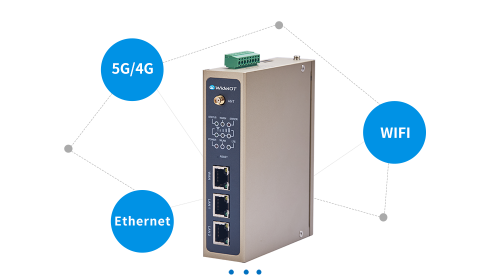

Device Networking

Supports 5G, 4G, WIFI, Ethernet, and other methods to achieve device networking and remote communication, meeting various industrial application scenarios.

Convenient Networking: Supports 5G/4G, WIFI, LORA, VPN networking, etc., with flexible networking methods

Secure Access: Supports APN and VPN security encryption, built-in firewall function for comprehensive network isolation and protection

Stable and Reliable: Supports multi-network backup, disconnection reconnection, and multiple hardware/software watchdogs to achieve device operation fault self-healing

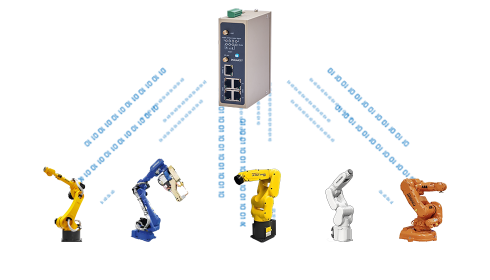

Data Acquisition

Southbound supports data acquisition from robotic (robotic arm) equipment such as Fanuc, ABB, Hyundai, Yaskawa, Estun, etc.

Convenient Acquisition: A single gateway supports simultaneous data collection from multiple robotic devices with different protocols

High-speed Acquisition: Embedded high-speed acquisition algorithms, concurrent collection and bus coordination mechanisms

Stable Acquisition: Intelligent bus anti-collision mechanism and acquisition link fault self-healing algorithm

Flexible Acquisition: Supports custom configuration of various collection rules (points, time, communication rules, etc.)

Edge Computing

Supports various edge computing functions such as intelligent collection, data filtering, alarm calculation, jump trigger, formula calculation, grouping strategy, scheduled tasks, algorithm development, etc. By establishing device models and standardizing data, it eliminates device heterogeneity and achieves standardization, greatly saving project R&D and construction costs; by implementing application algorithms and task control at the edge, it enables intelligent and smart applications.

Thing Model Definition

Formula Calculation

Local Strategy

Data Storage

Event Trigger (Jump/Alarm)

Scheduled Tasks

Algorithm Development

Data Standardization

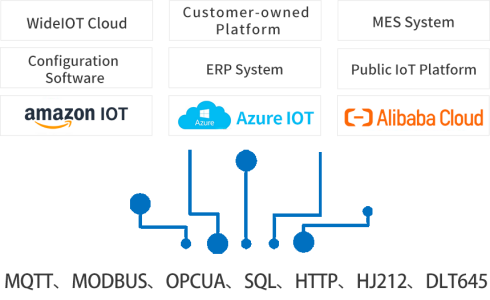

Cloud Access

Northbound supports access to WideIOT Cloud Platform, customer-developed cloud platforms, public iot platforms, configuration software, MES systems, industry monitoring platforms and other industrial software.

Secure and Reliable Access: Supports various TLS security encryptions, multiple QOS levels, and breakpoint resume

Independent Message Adaptation: Supports development adaptation or independent definition for quick access to various cloud platforms and industrial software

Rich Cloud Protocols: Supports MQTT, HTTP, TCP, OPC UA, Modbus-TCP, SQL

Multiple Remote Centers: Supports simultaneous connection to multiple remote data centers and remote configuration management platforms

Open API Interfaces: Supports rich API development interfaces for users to quickly develop various business platforms

Remote Management

Through the WideIOT Device Management Platform, remote configuration and management of remote robotic equipment and gateways can be achieved. It mainly realizes the monitoring of robotic device online status and data, the remote configuration and management of gateway data collection projects, and the remote maintenance and diagnosis of gateways.

Remote Configuration Management

Template-based Configuration Management

Real-time Status Monitoring

Remote Diagnosis and Maintenance

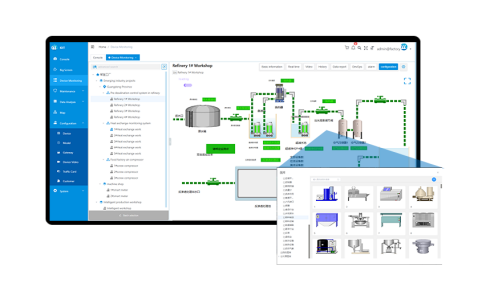

Configuration Monitoring

By connecting the gateway's data to the WideIOT Industrial Data Cloud Platform, remote monitoring of robot data can be achieved. Through the platform's configuration function, users can freely draw configuration monitoring screens to realize visual configuration monitoring of equipment operation status and process flows on computers and mobile phones.

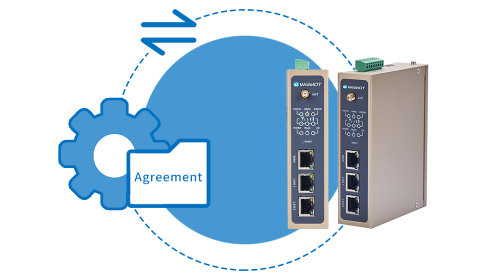

Protocol Conversion

Supports converting various robotic device protocols into Modbus TCP, Modbus RTU, OPC UA, MQTT and other protocols to achieve interconnection between different robots and various industrial control software and controllers.

Stable and Reliable

Full industrial-grade design, supporting 6~35V wide voltage power supply, -20°C~70°C industrial-grade wide temperature design, and industrial certifications such as EMC and high/low temperature from authoritative institutions, meeting harsh industrial environment applications.

Embedded hardware and software watchdogs, multi-level monitoring programs, ensuring hardware, systems, and applications achieve fault self-healing in the shortest time, thus realizing real-time online and normal operation of devices forever, meeting various unattended application scenarios.
