A specialized security isolation device for production networks | Industrial Network Isolation
5× 100M Ethernet | 2× Serial
Wi‑Fi | Ethernet
IP Renaming | Firewall | ACL
-20~70°C | 9‑35V DC | EMC Level 4
5-Network-Port NAT Translation Gateway for Multi-Segment Interconnection
Advanced capabilities designed for industrial network isolation
Detailed technical specifications for the WC505 NAT Coupler
Choose the right WC505 configuration for your network isolation requirements
RS485 serial ports – ideal for connecting to Modbus RTU devices, PLCs, and industrial instruments in larger networks.
RS232 serial ports – suitable for legacy equipment and console connections in multi‑device environments.
Not sure which configuration is right for your specific needs? Our technical experts are here to help you make the best choice.
Access technical documentation and resources for the WC505 NAT Coupler
WC505 Product Specification (PDF)
NAT Coupler User Manual (PDF)
Can't find what you're looking for? Our technical support team is here to help with any questions or specific documentation needs
Get help with product usage and troubleshooting
Watch instructional videos on product setup and configuration
Request custom documentation for specific use cases
Frequently asked questions about the WC505 NAT Coupler

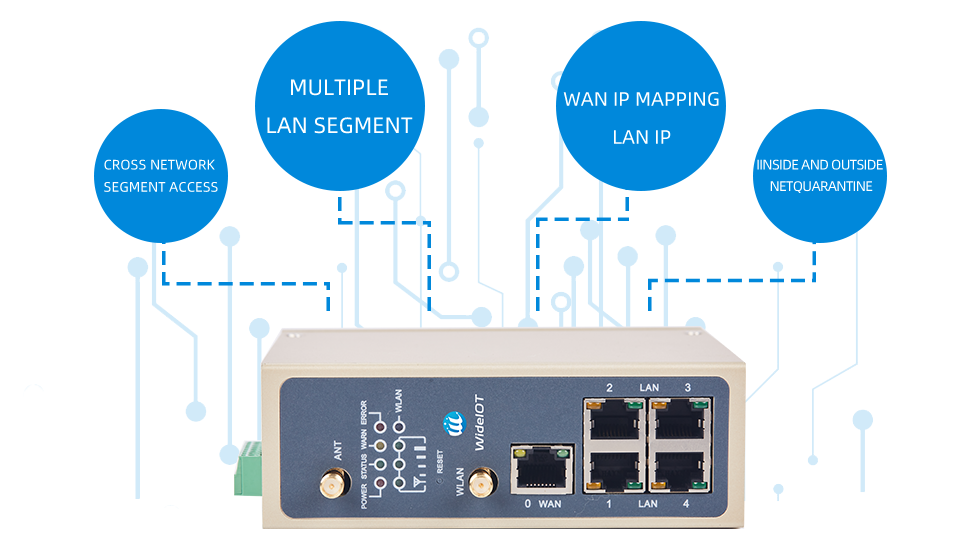

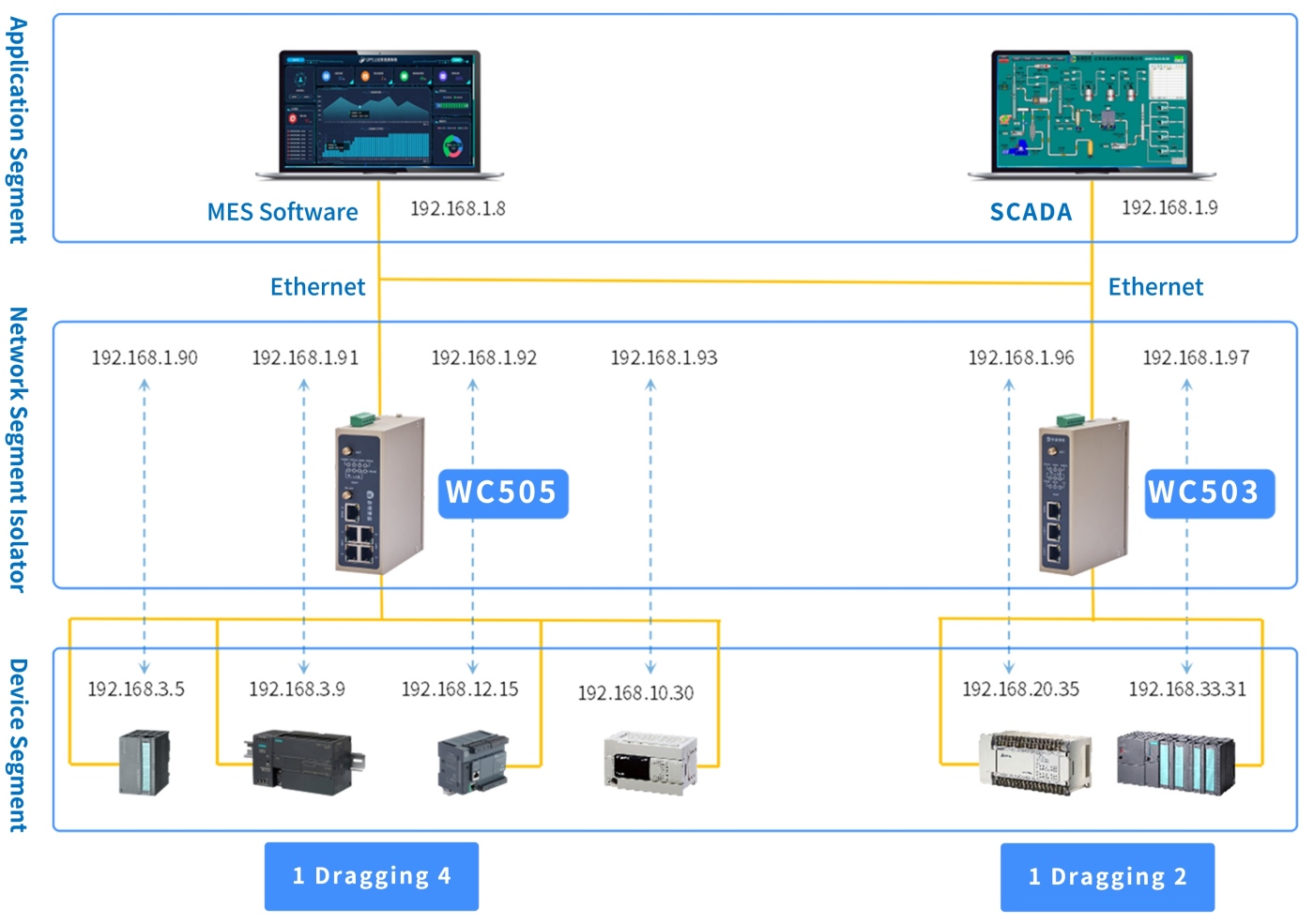

The WC505 provides network isolation and IP translation between device networks (PLCs, HMIs, CNCs) and application networks (MES, SCADA). It enables unified IP planning, cross‑segment access, and prevents IP conflicts and broadcast storms.
WC505 supports 5 IP conventions, allowing mapping of up to five internal subnets to external IPs – ideal for larger production networks with multiple device segments.
Yes. The NAT Coupler performs IP translation, allowing devices with identical IP addresses in different subnets to coexist and communicate with upper systems without conflict.
Industrial‑grade design with wide voltage 9‑35V DC, wide temperature -20°C to 70°C, and EMC level 4 protection. Suitable for factory floors and industrial cabinets.
Yes, WC505 supports both Wi‑Fi (2.4GHz, 802.11b/g/n) and Ethernet connections, providing flexible networking options. You can use Wi‑Fi for wireless device segments and Ethernet for backbone connectivity.
Built‑in firewall with SPI, DoS prevention, ACL, and optional VPN (L2TP, PPTP, OpenVPN, IPsec) for secure tunneling.
Yes, the two RS232/485 serial ports support Modbus RTU, making it easy to connect to PLCs, instruments, and other industrial devices.
We offer 1‑year warranty and lifetime technical support. 7×24 hotline, online chat, and remote assistance are available. On‑site deployment services can be arranged.
Our networking specialists are ready to help you choose the right WC503 NAT Coupler for your network segmentation needs.
