Application Solution‌

Industry Background

Rapid global urbanization has led to a sharp rise in high-rise residential buildings, making secondary booster pump rooms an indispensable component of urban drinking water distribution networks. Most legacy pump stations face widespread pain points: aging equipment, excessive power consumption, unstable water pressure, and outdated manual operation & maintenance workflows, which severely degrade residents’ water supply experience.
Worldwide water regulatory authorities are rolling out stricter mandates to drive digital transformation of water infrastructure:

• Governments globally are launching asset renewal schemes to phase out inefficient, aged secondary water supply facilities.
• Specialized standardized O&M frameworks are being enforced for all booster pump stations.
• Updated water supply legislation requires unified professional management of residential water facilities after handover to licensed water operators, alongside dedicated municipal renovation funding support.

The latest international drinking water compliance codes stipulate that all shared water assets must be transferred to certified water utilities for centralized management upon inspection approval. Mandatory coverage includes equipment upkeep, real-time water pressure & water quality monitoring, and accurate water metering. Regulators also encourage the adoption of digital, automated water management technologies to elevate overall service standards.
Deploying a cloud-based remote monitoring & O&M system is no longer just a compliance requirement — it delivers tangible cost savings and accelerates sustainable, high-quality growth for water service providers.

Core Industry Pain Points

1. Low Inspection Efficiency & On-Site Safety Risks

Pump rooms are geographically scattered with long scheduled inspection cycles, making sudden equipment failures hard to detect promptly. Underground pump stations often suffer high humidity and poor ventilation, exposing field technicians to electric shock and toxic gas hazards during manual rounds.

2. Delayed Early Warning & Slow Emergency Response

Without 24/7 real-time monitoring, faults are only discovered after full shutdown. Minor hidden issues such as slow pipe leakage or gradual pressure drop accumulate and escalate into city-wide water outages. Operators only receive alerts via resident complaints or periodic patrols, leading to costly response delays.

3. Severe Unnecessary Energy Waste

Most pump sets run at fixed pressure or preset timetables without dynamic load adjustment. During off-peak low-demand hours, constant-speed operation generates massive idle power loss, pushing energy expenditure far above optimal levels.

4. Fragmented Siloed Data & Disorganized Workflows

All pump room operational data is stored locally on isolated hardware with no unified centralized platform. Management teams lack a full overview of network-wide asset status. Paper-based logs and phone-based fault reporting prevent standardized, closed-loop tracking of inspection, repair and maintenance tasks.

5. Experience-Driven Decision-Making & Limited Regulatory Visibility

Disjointed equipment health, maintenance and water safety datasets hinder data-backed strategic planning, forcing managers to rely on subjective experience. Regulators lack secure, standardized data sharing channels with water utilities, slowing oversight and compliance tracking.

WideIOT Integrated Pump Room Retrofit Solution

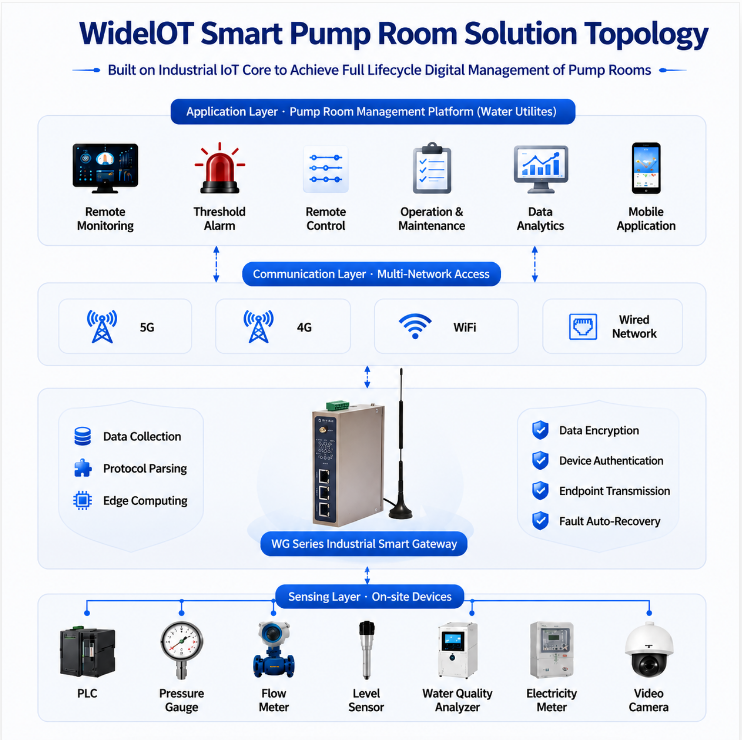

To resolve all legacy pump station operation pain points, WideIOT delivers an end-to-end intelligent upgrade solution centered on industrial intelligent gateways, enabling full digitalization of PLC data collection and standardized cloud reporting.
By deploying WideIOT industrial gateways inside pump rooms, operators can connect PLCs, pressure transmitters, flow meters, liquid level sensors, water quality analyzers, smart power meters and security cameras simultaneously. The system collects real-time metrics including pump running status, valve opening, inlet/outlet pressure, instantaneous flow, tank water level, residual chlorine, turbidity, equipment voltage/current and live video streams. All data is securely transmitted via 5G/4G cellular networks to the water utility’s central cloud platform, unlocking remote monitoring, threshold alarms, remote control, full-cycle work order management and data analytics capabilities.


Core System Functions

1. Multi-Protocol Universal Data Acquisition

WideIOT gateways feature abundant serial, Ethernet and IO ports with built-in multi-protocol parsing engines. They unify data collection from PLCs, variable frequency drives, sensors, water/electric meters and water quality analyzers. Supported connectivity options include 5G, 4G, Wi-Fi and wired Ethernet. Native compatibility with Modbus, MQTT, mainstream global industrial standards, ensures seamless integration with all field hardware and third-party cloud platforms.

2. Real-Time Remote Visual Monitoring

Managers access the central platform via PC or mobile devices to view full network asset dashboards, interactive site maps, equipment archives, live process parameters, alarm frequency and maintenance work orders. Complete 24/7 visibility across all distributed pump stations eliminates unnecessary site visits.

3. Tiered Intelligent Alarm Notifications

Customizable threshold rules trigger instant alerts via SMS, email and mobile app push notifications for all abnormal readings. Operators instantly retrieve exact pump room location, timestamp and raw fault data for fast resolution. Tiered alert routing drastically reduces the frequency of routine physical patrols.

4. Remote On-Site Equipment Control

Gateways securely transmit control commands to remote PLC hardware, allowing authorized staff to remotely start/stop pumps and adjust valve states. This drastically improves emergency incident handling and prevents large-scale water supply disruptions.

5. Remote PLC Debugging & Program Upload/Download

Through WideIOT secure maintenance tunnels, engineering teams remotely diagnose, reprogram and upload firmware to off-site PLCs. Fault resolution turnaround is drastically shortened, cutting costly cross-region business travel.

6. Multi-Center Bidirectional Data Synchronization

The gateway supports parallel data forwarding to multiple independent platforms simultaneously: internal water utility operation dashboards, government regulatory supervision systems and public water quality display portals. Secure cross-party data sharing fully satisfies global regulatory compliance reporting requirements.

7. Data-Driven Intelligent Analytics

Aggregated cross-station datasets cover water throughput, alarm frequency, fault distribution, work order completion rates and real-time water safety metrics. Visualized dashboards generate comparative analysis reports to support strategic decisions on energy efficiency optimization and infrastructure renewal projects.

Typical Deployment Scenarios

1. Retrofit for Aging Residential Pump Rooms

For older residential buildings with outdated pump hardware, WideIOT gateways and supplementary sensors can be installed without full pump replacement. Real-time operational data collection and remote monitoring are rapidly enabled, bringing legacy assets up to unified digital management standards with minimal construction downtime.

2. Standardized Smart Design for New Residential Developments

Integrate WideIOT’s monitoring architecture into pump room engineering blueprints during new construction projects. Predefined data collection points, communication frameworks and cloud integration specifications guarantee fully functional remote monitoring at handover, simplifying future asset transfer to municipal water operators.

3. Centralized Network-Wide O&M for Water Utilities

All pump stations under a single water utility are consolidated onto one unified cloud dashboard. Tiered alarm logic links directly to the digital work order system, forming a closed-loop workflow: alarm detection → work order assignment → on-site resolution → result confirmation. Overall service quality and maintenance throughput are significantly improved.

Measurable Business & Compliance Benefits

1. Meet Global Water Regulatory Standards

Fully aligns with international drinking water legislation requirements for centralized asset oversight and digital recordkeeping. Secure data sharing with regulatory authorities streamlines regular compliance audits and seamless facility handover procedures.

2. Cut Maintenance Labor & Eliminate Safety Hazards

Central cloud monitoring and automated tiered alarms slash routine on-site patrols. High-risk underground pump stations no longer require frequent human entry, lowering workplace safety incidents and easing workforce shortages.

3. Optimize Pump Operation & Reduce Energy Bills

High-frequency flow and pressure data are processed locally via edge computing to dynamically adjust pump speed and unit combinations. Automatic low-frequency operation during off-peak hours eliminates constant-pressure energy waste, delivering substantial electricity cost savings for property and water management firms.

4. Predictive Equipment Maintenance & Extend Asset Lifespan

24/7 continuous tracking of pump motor temperature, vibration and current generates trend analysis to identify early equipment degradation. Operations shift from reactive breakdown repairs to scheduled predictive maintenance, minimizing unplanned outages and major overhaul expenditure.

5. Accurate Pipeline Leak Detection & Lower Non-Revenue Water Loss

Real-time inlet/outlet flow comparison algorithms automatically flag micro-pipe leakage and trigger instant alerts. Maintenance crews rapidly locate and repair leaks, drastically cutting overall network water loss rates.

6. Data-Backed Refined Water Utility Management

Unified cross-station analytics covering water output, faults and water safety generate actionable visual reports to guide energy-saving retrofits and targeted infrastructure upgrades.
