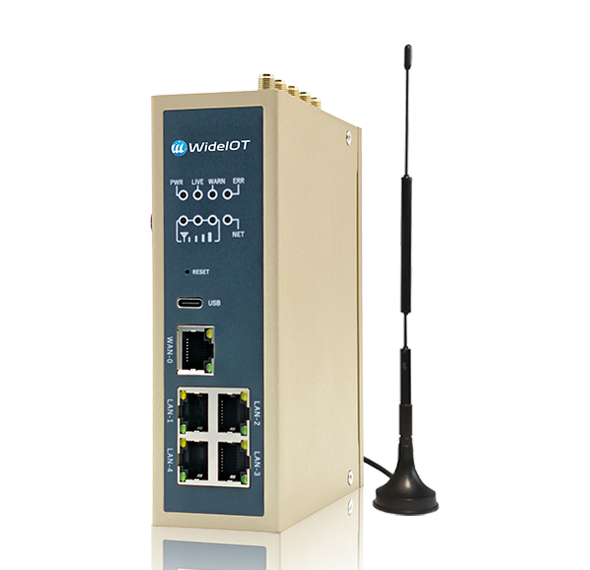

WR715 Series Industrial Routers-Industrial Router|5x GbE_3x Serial_Dual SIM

Key Features

Advanced capabilities designed for industrial IoT applications

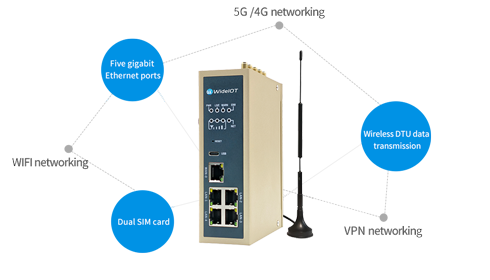

Fast and Convenient, Easy to Deploy

5x Gigabit Ethernet ports + 3x RS485/232 serial ports (optional DI/DO) for versatile connectivity
Supports 5G/4G, PPPoE, dual‑band Wi‑Fi (2.4/5.8 GHz), and dual Nano‑SIM – all in a compact metal enclosure
Built‑in wireless DTU for serial‑to‑IP conversion (TCP/UDP, WDTCP, WDUDP), simplifying legacy device networking

High‑Speed Access, Global Band Coverage

5G SA/NSA with downlink up to 2.5 Gbps, 4G CAT4/CAT1, and 3G – global frequency bands supported
Dual‑band Wi‑Fi 5 (2.4/5.8 GHz) up to 1.3 Gbps, optional Wi‑Fi 6, with AP/STA/Relay modes
Dual SIM auto‑failover and multi‑network redundancy (Ethernet/Wi‑Fi/Cellular) ensure always‑on connectivity

Industrial‑Grade Design & Reliability

Wide voltage 9‑35V DC, wide temperature -20℃~70℃ (extendable -30℃~75℃), IP30 metal enclosure, fanless
1.5KV isolation transformers on Ethernet ports, 15KV ESD protection on serial ports, EMC Level 4
Hardware & software watchdogs, link detection (heartbeat/auto‑reconnect), application care for self‑healing

Powerful Security & Easy O&M

Multiple VPN options: IPsec, OpenVPN, L2TP, PPTP, ZeroTier – with TLS encryption & certificate auth
SPI firewall, DoS attack prevention, ACL, IP‑MAC binding, port mapping, DMZ
Intuitive Web UI, Telnet/SSH, cloud platform management, remote log and firmware upgrade
Traffic management (bandwidth stats, rate limiting) and comprehensive diagnostic tools (Ping, Traceroute, AT commands)

Specifications

Detailed technical specifications for the WR715 Industrial Router

Hardware Specifications

Category	Parameter	Details
Hardware Platform	CPU Core	880 MHz dual-core
	Runtime Memory	256MB DDR3
	Program Storage	32MB SPI-FLASH
Interface Specifications	Power Socket	DC 9V-35V (terminal block)
	Ethernet Ports	5 × Gigabit Ethernet (10/100/1000 Mbps), 1.5KV isolation transformer protection, supports WAN/LAN
	Serial Ports	3 × RS485/RS232 (optional configurations: 2 serial ports + 1 DI + 1 DO, or 1 serial port + 2 DI + 2 DO), 15kV ESD protection, up to 255 slave devices per bus
	5G Network	5G Sub-6 GHz, NSA and SA modes; downlink up to 2.5 Gbps, uplink up to 650 Mbps (optional)
	4G Network	LTE Cat4 (down 150Mbps / up 50Mbps) or LTE Cat1 (down 10Mbps / up 5Mbps) – optional
	Wi-Fi Network	2.4GHz & 5.8GHz dual-band, Wi-Fi 5 (802.11ac) or Wi-Fi 6 (optional), up to 1.3 Gbps
	GNSS	Supports BeiDou, GPS, etc. (optional)
	SIM Card Slot	Nano-SIM × 2 (eSIM optional)
	Reset Button	Pinhole reset button
Antenna Connectors	5G: SMA × 4, 4G: SMA × 2, WLAN: RP-SMA × 2 (up to 6)	-
Power Consumption	Power	4.5W (typical)
Mechanical Properties	Dimensions	143 × 112 × 45 mm
	Mounting	DIN rail mountable
	Housing	Metal casing
	Protection Rating	IP30
	Heat Dissipation	Fanless
	Weight	Approx. 608g (varies by configuration)
Operating Environment	Ambient Humidity	5% ~ 95% (non-condensing)
	Storage Temperature	-40℃ ~ 85℃
	Operating Temperature	-20℃ ~ 70℃ (extendable -30℃ ~ 75℃)
LED Indicators	3×3 Indicators	PWR (red), LIVE (green), WARN (yellow), ERR (red); 3× cellular signal (green); NET (green)
EMC Standards	Electrostatic Discharge Immunity	GB/T 17626.2-2018, Level 4
	Electrical Fast Transient / Burst Immunity	GB/T 17626.4-2018, Level 4
	Oscillating Magnetic Field Immunity	GB/T 17626.18-2016, Level 4
	Radio-Frequency Electromagnetic Field Immunity	GB/T 17626.3-2016, Level 4
	Surge Immunity	GB/T 17626.5-2019, Level 4
	Power-Frequency Magnetic Field Immunity	GB/T 17626.8-2006, Level 4
Physical Properties	Vibration	GB/T 2423.10-2008
	Impact	GB/T 2423.5-2019
	Drop	GB/T 2423.8-1995

Software Specifications

Category	Feature	Details
Network Functions	Network Access	5G/5G-RedCap/4G-Cat4/4G-Cat1, Wi-Fi (AP/STA/Relay), Ethernet
	Network Authentication	CHAP/PAP, APN, VPDN
	Cellular Network	GSM/GPRS/EDGE/UMTS/HSPA+/CDMA2000/TD-SCDMA/TDD-LTE/FDD-LTE/5G (see band list)
	Multi-network Redundancy	Automatic switching between Ethernet, Wi-Fi, 4G, 5G; dual SIM failover
LAN/WAN Protocol	LAN Protocol	ARP, Ethernet
LAN/WAN Protocol	WAN Protocol	PPP, PPPoE, DHCP, Static IP
IP Application	Ping, Trace, DHCP Server/Relay/Client, DNS Relay, DDNS, Static Routing, NAT (Source/Destination/DMZ)	-
Wi-Fi (Optional)	Standard	Wi-Fi 5 (802.11ac) / Wi-Fi 6 (802.11ax) – optional
	Bands	2.4GHz & 5.8GHz dual-band
	Operating Modes	AP, STA, Relay, WDS
	Security	WPA/WPA2-PSK, WEP, TKIP, AES; Open/Shared key
Security	Network Security	SPI firewall, DoS protection, ACL, IP-MAC binding, port mapping, DMZ
	Data Security	L2TP / PPTP / OpenVPN / IPsec VPN, ZeroTier (optional)
	Authentication	TLS encryption, username/password or certificate
Reliability	Link Detection	Heartbeat detection, auto-reconnect on failure
	Watchdog	Software & hardware watchdog, self-test, self-repair
	Application Care	Real-time monitoring, self-healing of application modules
Intelligent Functions	Integrated DTU	WDTCP, WDUDP, transparent TCP/UDP for serial-to-IP
Management & Maintenance	Traffic Management	Bandwidth statistics, IP-based rate limiting
	Configuration	Telnet, Web UI, SSH, remote platform
	Upgrade	Web interface, remote upgrade
	Logging	Local/remote system log, power‑fail save
	Network Management	Cloud management platform, batch configuration
	Diagnostic Tools	Ping, Traceroute, AT commands, interface status

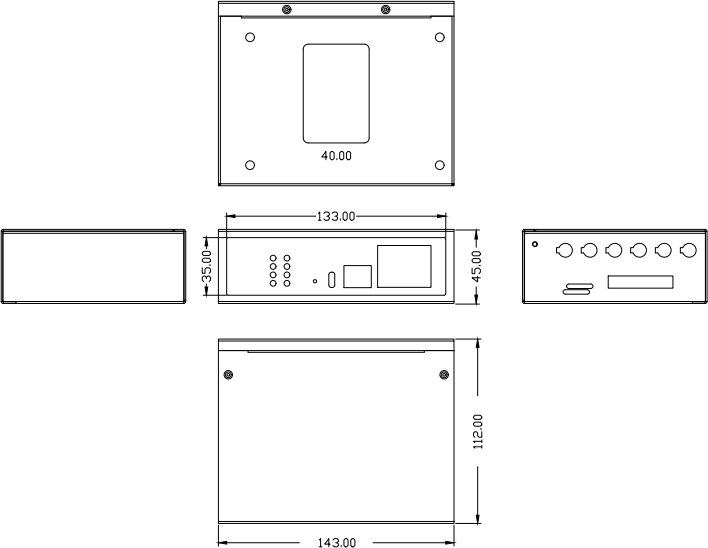

Dimensions Diagram

143 × 112 × 45 mm (DIN rail mountable)

Product Selection

Choose the right WR715 configuration for your networking requirements

Ordering Code Rule: WR715-【N】-【S】

Code Segment	Option	Description
N (Network Type)	LL02 / LL07 / NF02 / NF07 / NF08 / W	LL02: 4G Cat1; LL07: 4G Cat4; NF02: 5G RedCap; NF07: 5G; NF08: 5G high-spec; W: Wi‑Fi
S (Serial Interface)	485 / 232	485: RS485; 232: RS232 (gateway has 3 serial ports, default optional type)
Example	WR715-LL07-232 (5×GbE + 4G Cat4 + RS232) WR715-LL02-485 (5×GbE + 4G Cat1 + RS485) WR715-LL07-W-485 (5×GbE + 4G Cat4 + Wi‑Fi + RS485)

Available Models

Model	Cellular	Wi‑Fi	Serial	Application
WR715-LL07-232	4G Cat4	No	RS232	General 4G routing, serial device networking
WR715-LL02-485	4G Cat1	No	RS485	Cost‑effective 4G, RS485 meters/PLCs
WR715-LL07-W-485	4G Cat4	Yes (2.4/5.8G)	RS485	4G + Wi‑Fi AP, ideal for site WLAN coverage
WR715-NF07-485	5G (full speed)	No	RS485	High‑bandwidth 5G backbone, industrial automation
WR715-NF02-W-232	5G RedCap	Yes	RS232	5G RedCap + Wi‑Fi, cost‑effective future‑ready

Recommended Configurations

WR715-NF07-485

5G full speed + RS485 – for ultra‑fast, low‑latency connectivity in smart factories, real‑time control, and large‑data applications.

Cellular: 5G (2.5 Gbps down)

Ethernet: 5× Gigabit

Serial: RS485 (3 ports)

WR715-LL07-W-485

4G Cat4 + Wi‑Fi AP + RS485 – versatile solution for remote site connectivity with local wireless network.

Cellular: 4G Cat4 (150Mbps)

Wi‑Fi: 2.4/5.8 GHz AP

Serial: RS485 (3 ports)

WR715-LL02-485

4G Cat1 + RS485 – most cost‑effective model for basic IoT connectivity (meters, sensors, PLCs).

Cellular: 4G Cat1 (10Mbps)

Ethernet: 5× Gigabit

Serial: RS485 (3 ports)

Need Help with Selection?

Not sure which configuration is right for your specific needs? Our technical experts are here to help you make the best choice.

Contact Technical Support

Downloads

Access technical documentation and resources for the WR715 Industrial Router

Product Specification

WR715 Product Specification (PDF)

Download

User Manual

Industrial Router Product User Manual (PDF)

Download

Need Additional Resources?

Can't find what you're looking for? Our technical support team is here to help with any questions or specific documentation needs

Technical Support

Get help with product usage and troubleshooting

Contact Support

Video Tutorials

Watch instructional videos on product setup and configuration

View Tutorials

Custom Documents

Request custom documentation for specific use cases

Request Docs

FAQ

Frequently asked questions about the WR715 Industrial Router

WR715 features a 880MHz dual‑core CPU, 5 Gigabit Ethernet ports, 3 RS485/232 serial ports, dual Nano‑SIM slots for cellular redundancy, and supports 5G SA/NSA (up to 2.5 Gbps downlink) with optional dual‑band Wi‑Fi 5 or Wi‑Fi 6. It is designed for high‑performance industrial routing and serial device connectivity.

WR715 supports PPTP, L2TP, OpenVPN, IPsec VPN, and optional ZeroTier, ensuring secure site‑to‑site or remote access for industrial applications. TLS encryption and certificate authentication are also supported.

Yes, WR715 features two Nano‑SIM slots (eSIM optional) with automatic failover. If the primary SIM loses connection, the gateway instantly switches to the secondary SIM to ensure always‑on cellular connectivity. This works together with multi‑network redundancy (Ethernet, Wi‑Fi, 4G, 5G).

Industrial‑grade design with wide voltage DC 9‑35V, wide operating temperature -20℃ to 70℃ (extendable -30℃ to 75℃), IP30 metal enclosure, fanless cooling, and EMC Level 4 protection. Suitable for factory floors, outdoor cabinets, and harsh industrial environments.

Routers can be managed via WideIOT Cloud Platform for remote configuration, monitoring, and firmware updates. Telnet, Web UI, SSH, and remote platform management are supported, enabling large‑scale deployment and maintenance.

In 5G NSA mode, downlink up to 2.5 Gbps and uplink up to 650 Mbps; in SA mode, downlink up to 2.1 Gbps and uplink up to 900 Mbps. 4G LTE Cat4 supports downlink 150 Mbps / uplink 50 Mbps, and Cat1 supports downlink 10 Mbps / uplink 5 Mbps.

WR715 supports dual‑band 2.4GHz and 5.8GHz Wi‑Fi, with optional Wi‑Fi 5 (802.11ac, up to 1.3 Gbps) or Wi‑Fi 6 (802.11ax) modules. Please specify your requirement when ordering using the -W option.

We offer a 1‑year warranty and lifetime technical support. 7×24 hotline, online chat, and remote assistance are available. On‑site deployment services can be arranged upon request. Extended warranty options are also available.
