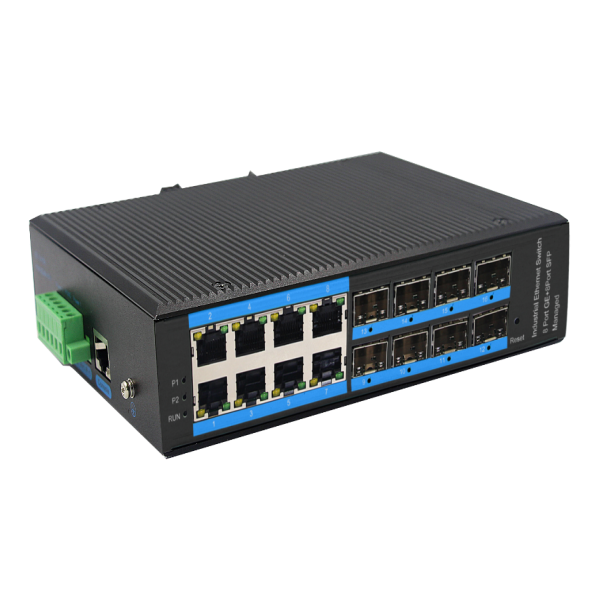

WS2016E-8G8TP-A

8-port 10//100/1000BASE-TX+8G SFP Managed Industrial POE Switch

Key Parameters

Ports: 8× 10/100/1000Base-TX RJ45 (PoE, Auto-MDI/X) + 8× Gigabit SFP slots
PoE Standard: IEEE 802.3af (15.4W) & IEEE 802.3at (30W) per port, ports 1-8 support PoE, total budget 240W
Performance: 56Gbps switch capacity, 12Mbit packet buffer, 41.6Mpps forwarding, 8K MAC table
Management: L2+ managed, CLI, Web GUI (HTTP/HTTPS), SNMP v1/v2c/v3, RMON, Telnet, SSH, TFTP
Redundancy Protocols: STP/RSTP/MSTP, ERPS (G.8032) <50ms recovery, Link Aggregation (LACP)
Power Input: 48~57V DC redundant, reverse polarity protection, <10W (switch) + PoE budget 240W
Industrial Design: -40~75°C operating, IP40 aluminum housing, DIN-rail mounting

Specifications

Detailed technical specifications for the WS2016E-8G8TP-A Managed Industrial Switch

Technical Specifications

Category	Parameter	Description
Model	WS2016E-8G8TP-A	8-Port Gigabit RJ45 PoE + 8-Port SFP Managed Industrial Switch
Ports	10/100/1000Base-TX	8× RJ45, auto-negotiation, auto-MDI/MDI-X, PoE supported (ports 1-8)
Ports	1000Base-FX	8× SFP slots (Gigabit)
PoE Specifications	PoE Standard	IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
	PoE Ports	Ports 1-8 support PoE (each up to 30W)
	Power Output	Max 15.4W (802.3af) / Max 30W (802.3at)
	Total PoE Budget	240W max.
	Power Pin Assignment	1/2 (+), 3/6 (-) (End-span)
	Auto Detection	Auto detects AF/AT powered devices
Performance	Switch Capacity	56Gbps
	Packet Buffer	12Mbit
	Forwarding Rate	41.6Mpps
	MAC Address Table	8K
Installation	DIN rail	–
Flow Control	Back pressure / IEEE 802.3x	Half duplex / Full duplex
Enclosure	IP40 aluminum housing	Shock & vibration resistant
LED Indicators	Power (Red), RUN (Green), Fiber (Green), Ethernet (Green), PoE (Yellow)	–
Power	Input Voltage	48 ~ 57V DC redundant, reverse polarity protection
Power	Power Consumption	Switch: <10W, PoE Budget: 240W max.
Network Protocols	IEEE 802.3	10Base-T
	IEEE 802.3u	100Base-TX/FX
	IEEE 802.3ab	1000Base-T
	IEEE 802.3z	1000Base-X
Cable Requirements	10Base-T: Cat3/4/5 UTP (≤100m) 100Base-TX: Cat5 or above UTP (≤100m) 1000Base-T: Cat6 or above UTP (≤100m)	–
EMC & Industry Standards	ESD (IEC61000-4-2)	Contact ±6kV / Air ±8kV
	RS (IEC61000-4-3)	10V/m (80~1000MHz)
	EFT (IEC61000-4-4)	Power ±2kV / Data ±1kV
	Surge (IEC61000-4-5)	Power: ±1kV(DM), ±2kV(CM) / Data: ±1kV
	CS (IEC61000-4-6)	3V (10k-150kHz), 10V (150k-80MHz)
	Conducted CM (IEC61000-4-16)	30V continuous / 300V 1s
Certifications	CE, FCC, RoHS	–
Dimensions (W×D×H)	176 × 137 × 46 mm	–
Weight	Product 1.25kg / Packing 1.4kg	–
Environment	Operating Temp	-40 ~ 75℃
Environment	Storage Temp / Humidity	-40 ~ 85℃ / 5% ~ 95% (non-condensing)
