WEC265

A quad-core 2.0GHz, 1 TOPS NPU, 5 Gigabit Ethernet ports, dual CAN port industrial edge computer

Key Parameters

Hardware: Quad‑core 2.0GHz, 1 TOPS NPU, 4GB RAM, 16GB Flash (optional 8GB/32GB), optional SSD up to 1TB
Interfaces: 5x Gigabit Ethernet, 2x isolated RS485/RS232 (expandable to 10 serial ports), 2x CAN FD, 2x DI + 2x relay, USB2.0, HDMI 2.0
Connectivity: 5G / 5G RedCap / 4G Cat4/Cat1, dual‑band Wi‑Fi (2.4G/5.8G), Bluetooth 4.2, GNSS (GPS/BDS/GLONASS)
Data Acquisition: 200+ protocols (Modbus, DLT645, CJ188, PLC, IEC104, IEC61850, BACnet, OPC UA)
Edge Computing: Data filtering, alarm, formula calculation, local programming, Python, Debian 12, open API
Cloud & Security: MQTT (JSON), WideIOT / AWS / Azure / Alibaba Cloud, VPN, TLS, firewall, multi‑platform integration
Industrial Reliability: -40℃~85℃ operating, 9~35V DC, IP30, fanless, watchdog, multi‑network backup, breakpoint resume, 1132g

Request Sample Download Datasheet

Key Features

Advanced capabilities designed for industrial IoT applications

Powerful Computing Resources

Quad‑core Cortex‑A55@2.0GHz CPU + 1 TOPS RKNN NPU
AI inference, video encoding/decoding (4K@60fps H.265/H.264/VP9)
Edge intelligence algorithms, complex policy calculation, local real‑time decision‑making

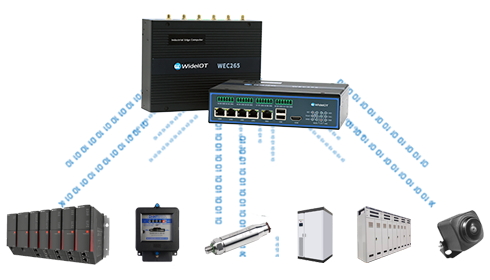

All‑Scenario Device Connectivity

5x Gigabit Ethernet, 2x isolated RS485/RS232 (expandable to 10 serial ports), 2x isolated CAN FD
Multi‑channel isolated IO, USB2.0, HDMI 2.0, TF card slot
Unified access for PLCs, instruments, sensors, energy storage, power equipment, and in‑vehicle devices

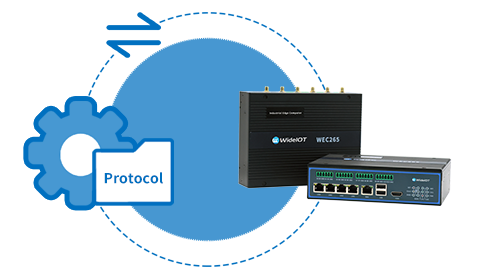

Extensive Protocol Library & Standardization

Supports Modbus, DL/T645, CJ188, PLC (Siemens, Mitsubishi, Omron, etc.), IEC104, IEC61850, BACnet, OPC UA
Multi‑device merging and sub‑device splitting, data format conversion and normalization
Southbound‑to‑northbound protocol conversion (e.g., multiple protocols → OPC UA, Modbus TCP, IEC104, IEC61850, BACnet)

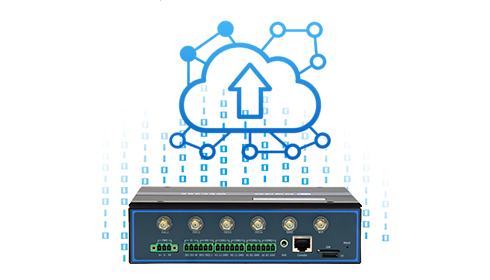

All‑Network & Secure Cloud Access

5G / 5G RedCap / 4G Cat4 / 4G Cat1, dual‑band Wi‑Fi, Bluetooth, GNSS (optional)
Multi‑network redundancy (Ethernet, Wi‑Fi, 4G, 5G auto‑switch), breakpoint resume, link detection and auto‑reconnect
Built‑in firewall (SPI, DoS protection, ACL, IP‑MAC binding), L2TP/PPTP/Open VPN/IPSec VPN, TLS encryption

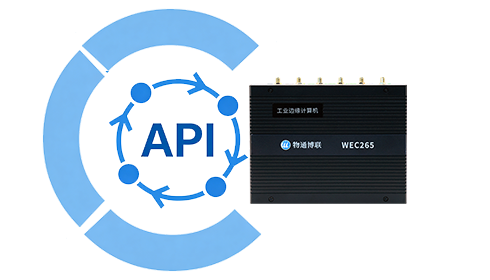

Open System & Easy Development

Debian 12 Linux (kernel 6) operating system
Supports Python programming and independent deployment of custom applications
Open APIs with MQTT+JSON data interface for rapid integration with any platform or custom system

One‑Stop Remote O&M

Local / remote configuration, engineering file import/export, diagnostics and logging
Remote upgrades, fault self‑recovery, comprehensive status (system/network/application) inquiry
Device maintenance express line with WideIOT cloud platform for remote debugging and diagnostics of on‑site equipment

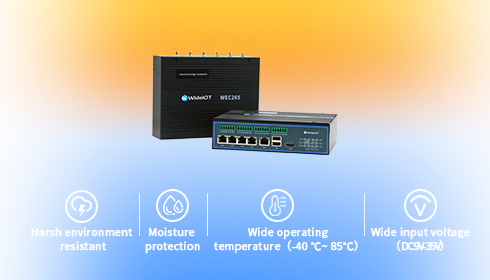

Industrial‑Grade High Reliability

Wide operating temperature: -40℃～85℃, wide voltage: DC 9～35V
Fanless design, metal casing, IP30 protection, multiple isolation protection
EMC Level 4 compliance, built‑in hardware/software watchdog, application care, self‑diagnosis and auto‑recovery

Specifications

Detailed technical specifications for the WEC265 Industrial Edge Computers

Hardware Specifications

Category	Parameter	Details
Hardware Platform	CPU Core	Quad‑core Cortex‑A55@2.0GHz
	GPU	Mali‑G52‑2EE, built‑in 2D acceleration hardware
	NPU	RKNN NPU, 1 TFLOPS computing power
	VPU	1080P@60fps H.265/H.264 encoding; 4K@60fps H.265/H.264/VP9 decoding
	Runtime Storage	4GB (8GB optional)
	Program Storage	16GB (32GB optional)
	Data Storage	256GB / 512GB / 1TB SSD (Mini PCIe, optional)
	Operating System	Debian 12 (Linux 6)
Interface Specifications	Power Socket	DC 9‑35V (terminal block)
	Ignition Signal	Isolated ignition input, up to 3750V (in‑vehicle low‑power option)
	Ethernet Ports	5×10/100/1000Mbps, 1.5KV isolation, 4 LAN (switch) + 1 WAN
	Serial Ports	2×RS‑232/485 (expandable to 10 serial ports, optional), 15kV ESD protection; each RS485 supports up to 255 slave devices (recommended 5‑25)
	I/O Port	2 isolated digital inputs + 2 isolated relay outputs
	USB Port	USB2.0, 2×Type‑A (multiple internal USB expansion ports)
	HDMI Port	1×HDMI 2.0
	CAN Port	Isolated CAN FD, 5000V DC isolation, 15kV ESD, 5Mbps, up to 110 nodes
	5G Network	5G or 5G RedCap (optional)
	4G Network	LTE Cat4 or Cat1 (optional)
	Wi-Fi Network	2.4G/5.8G dual‑band, 802.11ac/a/b/g/n, up to 433.3Mbps
	Bluetooth	BLE 4.2 (optional)
	GNSS	BDS B1 / GPS L1 / GLONASS L1 (optional)
	SIM / TF / RTC	1×Micro SIM (drawer‑style, eSIM optional); Micro TF (8/16/32GB); RTC with battery; pinhole reset
Expansion & Antenna	Reserved Expansion Ports	MIPI+I2C (touchscreen), 3×USB (serial expansion), 8×GPIO (I/O expansion)
	Antenna Connectors	5G: SMA×4, 4G: SMA×2, WLAN: RP‑SMA×1, GPS: RP‑SMA×1 (total 6)
	Indicator Lights	4×3 matrix: PWR(red), LIVE(green), WARN(yellow), ERR(red); 3×4G signal(green), NET(green), Wi‑Fi(blue), 3 reserve (cloud/position)
Mechanical Properties	Dimensions	186 × 141 × 49.8 mm
	Installation	Wall‑mounted or desktop
	Housing	Metal casing (black)
	Protection Rating	IP30
	Cooling	Fanless heat dissipation
	Weight	1132g (varies with configuration)
Environmental & Power	Operating Temp.	-40℃ ~ 85℃
	Storage Temp.	-40℃ ~ 85℃
	Humidity	5% ~ 95% (non‑condensing)
	Power Consumption	Typical 5.5W
	EMC & Physical	EMC level 4 (GB/T17626); vibration/shock/drop per GB/T2423

Software Specifications

Category	Feature	Details
Network Functions	Network Access	5G / 5G‑RedCap / 4G‑Cat4 / 4G‑Cat1, dual‑band Wi‑Fi (AP/STA/Relay), Ethernet
	Cellular Authentication	CHAP/PAP, APN, VPDN
	LAN / WAN Protocols	ARP, Ethernet, PPP, PPPoE, DHCP, static IP
	IP & Routing	Ping, Trace, DHCP Server/Relay/Client, DNS relay, static routing, NAT (SNAT/DNAT/DMZ)
	Multi‑Network Redundancy	Auto‑switch between Ethernet, Wi‑Fi, 4G, 5G; link detection & auto‑reconnect
Data Acquisition & Edge Computing	Smart Data Collection	Single device collects from multiple device types; flexible acquisition projects
	Protocol Parsing	200+ protocols: Modbus, DLT645, CJ188, Siemens/Mitsubishi/Omron PLCs, instruments, sensors, water/electricity/heat meters, PV inverters, substation equipment, etc.
	Edge Computing	Data filtering, grouped collection, alarm calculation, formula calculation, local programming (Python), independent app deployment
	Data Standardisation	Merge multiple devices, split sub‑devices, data format conversion, object modelling
	Data Forwarding	Convert southbound protocols to OPC UA, Modbus TCP, IEC 104, IEC 61850, BACnet, MQTT (JSON)
	Open API & Cloud Access	MQTT+JSON data interface; integrate with WideIOT Cloud, EMS, BMS, MES, SCADA, AWS IoT, Azure IoT, Alibaba Cloud, etc.
Security	Firewall & Protection	SPI, DoS prevention, ping probe, port mapping, DMZ, ACL, IP‑MAC binding
	VPN & Encryption	L2TP/PPTP/OpenVPN/IPSec VPN (SD‑WAN optional), TLS encryption, username/password or certificate authentication
	Data Security	Breakpoint resume with data storage, automatic reconnection, multi‑layer encryption
Reliability	Watchdog & Self‑Healing	Hardware/software watchdog, self‑diagnosis, application care (automatic error handling and recovery)
Reliability	Link & Network Redundancy	Ping‑based link detection, auto‑reconnect, multi‑network mutual backup
Management & Maintenance	Configuration	Local/remote configuration of acquisition projects, engineering import/export
	App & System Update	Local/remote software and firmware updates, rapid feature iteration
	Remote O&M	Via WideIOT Device Express Line and cloud platform: remote debugging, diagnostics, upgrades for edge computers and connected PLCs
	Logging & Diagnostics	Comprehensive logging, diagnostic command interface, local/remote self‑diagnosis, status enquiry (system, module, network, application)
	Bulk Operations	Batch engineering import/export, centralised management for globally distributed gateways

Dimensions Diagram

* Dimensions: 186 × 141 × 49.8 mm (mounting holes & interface locations as per product drawing)

Product Selection

Choose the right WEC265 configuration for your specific requirements

Ordering Code Rule: WEC265-{CELL}-{Module}-{SoftWare}

Code Segment	Option	Description
CELL (Cellular Network)	LL02: 4G Cat1; LL07: 4G Cat4; NF02: 5G RedCap; NF07: 5G	Choose cellular connectivity: 4G Cat1 (low power), 4G Cat4 (full Netcom), 5G RedCap, or full 5G
Module (Add‑ons)	W: Wi‑Fi (2.4G/5.8G, 802.11ac); E: eMMC Storage (8GB); G: GNSS (GPS/BDS/GLONASS)	Optional modules can be combined (e.g., W+E, W+G, E+G, or W+E+G)
SoftWare (Firmware)	MQTT: Universal version; EMS: Energy version	MQTT for third‑party clouds (Modbus, PLC, CJ188, etc.); EMS for IEC104, IEC61850, power/energy protocols

Available Models (Examples)

Model	Cellular	Add‑on Modules	Software Version	Key Applications
WEC265-LL07-MQTT	4G Cat4	None (standard)	Universal MQTT	Modbus, PLC, CJ188, DLT645, sensors
WEC265-LL02-W-EMS	4G Cat1	Wi‑Fi	Energy EMS	IEC104, IEC61850, energy storage, substations
WEC265-NF02-G-MQTT	5G RedCap	GNSS	Universal MQTT	Vehicle telematics, mobile edge, low‑latency data
WEC265-NF07-W-E-MQTT	Full 5G	Wi‑Fi + eMMC (8GB)	Universal MQTT	High‑bandwidth AI, video, data caching, rugged edge
WEC265-LL02-W-E-G-EMS	4G Cat1	Wi‑Fi + eMMC + GNSS	Energy EMS	Distributed energy storage, grid edge, data logging + GPS

Recommended Configurations

WEC265-LL07-MQTT

4G Cat4 full Netcom + Universal MQTT – best for industrial automation, PLC data acquisition, and energy metering.

Cellular:4G Cat4 (global bands)

Protocols:Modbus, PLC (Siemens, Mitsubishi, etc.), CJ188, DLT645

Interfaces:5 GbE, 2×RS485/232 (expandable to 10), 2×CAN FD

WEC265-LL02-W-EMS

4G Cat1 + Wi‑Fi + Energy EMS software – tailored for power substations, renewable energy, and energy storage.

Cellular:4G Cat1 (low power, wide coverage)

Protocols:IEC104, IEC61850, DNP3, Modbus, BACnet

Extra:2×isolated DI, 2×relay, isolated CAN

WEC265-NF02-G-MQTT

5G RedCap + GNSS + Universal MQTT – ideal for connected vehicles, mobile robotics, and real‑time edge AI.

5G:5G RedCap (efficient, high‑throughput)

Positioning:GPS/BDS/GLONASS

Edge Compute:Quad‑core 2.0GHz, 1 TOPS NPU, 4GB RAM, 16GB Flash

Need Help with Selection?

Not sure which configuration is right for your specific needs? Our technical experts are here to help you make the best choice.

Contact Technical Support

FAQ

Frequently asked questions about the WEC265 Industrial Edge Computers

WEC265 supports multiple cellular options: 5G (full version) offers ultra‑high bandwidth (up to several Gbps) and low latency for video/AI; 5G RedCap provides a cost‑efficient 5G solution for industrial IoT; 4G Cat4 delivers downlink 150Mbps / uplink 50Mbps for most industrial applications; 4G Cat1 is ideal for low‑power, basic data transmission. Choose based on bandwidth, latency, and power requirements.

WEC265 supports 200+ protocols including: Modbus (RTU/TCP), DL/T645, CJ188, Siemens PLCs (S7‑200/300/400/1200/1500), Mitsubishi, Omron, Delta, Schneider, IEC 104, IEC 61850, BACnet, OPC UA, DNP3, and many more. It can collect data from water/electricity/heat meters, PV inverters, energy storage systems, substation equipment, sensors, and special‑purpose vehicles.

WEC265 features a quad‑core Cortex‑A55@2.0GHz CPU, 1 TOPS RKNN NPU for AI acceleration, and hardware video encode/decode (4K@60fps H.265/H.264/VP9). It runs Debian 12 (Linux 6) and supports Python programming, enabling deployment of edge intelligence algorithms, real‑time video analytics, predictive maintenance, and local decision making.

Yes. WEC265 supports automatic switching between Ethernet, Wi‑Fi, 4G, and 5G links (multi‑network redundancy). It also features breakpoint resume with local data storage (optional TF/SSD), ensuring no data loss during network interruptions. Built‑in link detection (Ping) and auto‑reconnect further enhance reliability.

Absolutely. WEC265 is designed for industrial harsh environments: operating temperature -40℃ to 85℃, storage temperature -40℃ to 85℃, humidity 5‑95% non‑condensing. It uses fanless metal casing (IP30), wide voltage DC 9‑35V, isolated ignition signal (up to 3750V), and passes EMC level 4 (GB/T17626) and vibration/shock tests (GB/T2423).

Use the ordering code: WEC265‑‑‑.
• CELL: LL02 (4G Cat1), LL07 (4G Cat4), NF02 (5G RedCap), NF07 (5G).
• Module: W (Wi‑Fi), E (eMMC storage, 8GB default), G (GNSS positioning). Can be combined (e.g., W+E+G).
• SoftWare: MQTT (universal version, supports Modbus/PLC/CJ188 etc.) or EMS (energy version, supports IEC104/IEC61850).
Example: WEC265‑LL07‑MQTT = 4G Cat4 universal edge computer.

Yes. When combined with the WideIOT Device Express Line and cloud management platform, WEC265 enables secure remote O&M: remote diagnostics, program updates, configuration changes, and debugging for both the edge computer itself and connected PLCs/devices. It significantly reduces on‑site maintenance costs.
